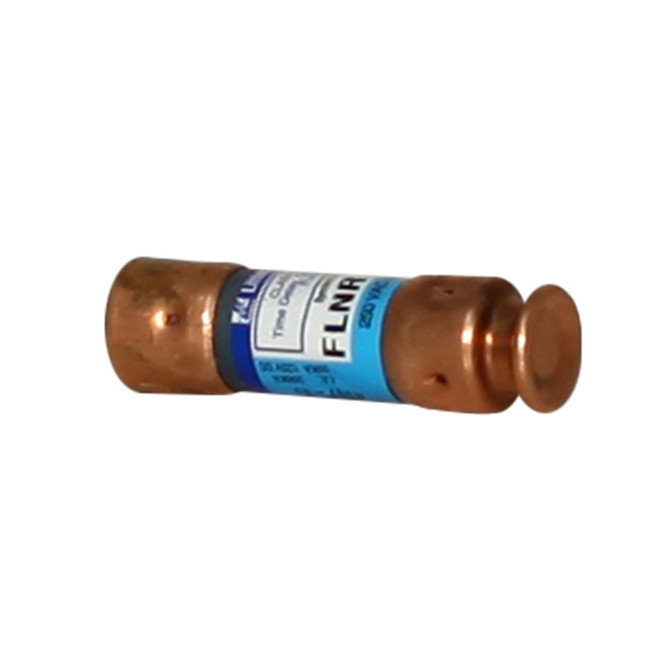

TR-R Low Voltage Time Delay Fuse, 10 A
$8.23
In Stock
- UPC:
- 782001747800
$8.23
DETAILS
TR-R current limiting time delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch circuits.
The time delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
- Time delay for motor start ups and transformer inrush currents without nuisance opening
- Current limiting for low peak let through current
- Rejection style design prevents replacement errors (when used with recommended fuse blocks)
- 200 kA at 250 VAC, 20 kA at 160 VDC interrupt rating
- Easy-to-read label for quick brand recognition and replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching and high current limitation
SPECIFICATIONS
| Amperage Rating | 10 A |
| Application | Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment |
| Body Size | 9/16 in Dia x 2 in L |
| Body Style | Cylindrical |
| Brand | Farmer Boy® |
| Class | RK-5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 A |
| Material | Polyester |
| Mounting Type | Clip |
| Rejection/Non-Rejection | Rejection |
| Series | TR-R |
| Standard/Approvals | UL 248-12, Guide JDDZ, File No. E2137|CSA C22.2 No. 248.12 Class 1422-02 File No. 012636_0_000|CE Certified |
| Terminal Type | Ferrule |
| Type | Low Voltage |
| Voltage Rating | 250 VAC/ 160 VDC |
SPECIFICATIONS
| Amperage Rating | 10 A |
| Application | Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment |
| Body Size | 9/16 in Dia x 2 in L |
| Body Style | Cylindrical |
| Brand | Farmer Boy® |
| Class | RK-5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/20 A |
| Material | Polyester |
| Mounting Type | Clip |
| Rejection/Non-Rejection | Rejection |
| Series | TR-R |
| Standard/Approvals | UL 248-12, Guide JDDZ, File No. E2137|CSA C22.2 No. 248.12 Class 1422-02 File No. 012636_0_000|CE Certified |
| Terminal Type | Ferrule |
| Type | Low Voltage |
| Voltage Rating | 250 VAC/ 160 VDC |
