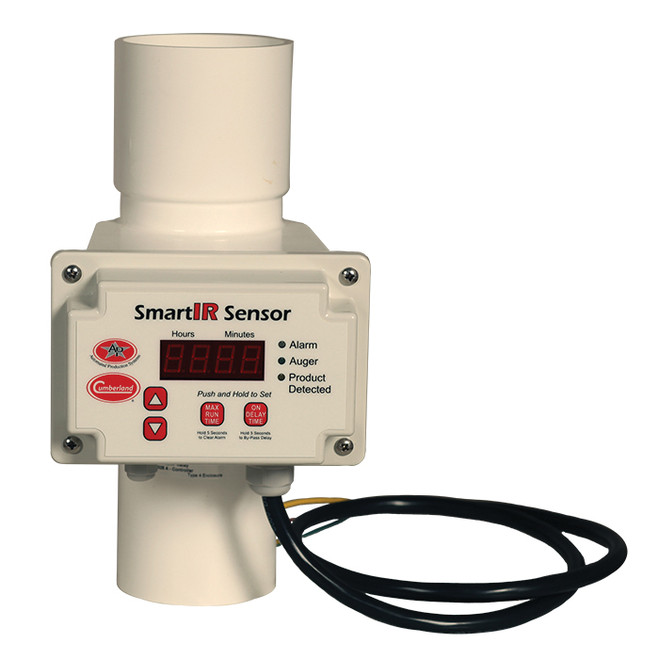

AP® Smart IR Sensor, 230 VAC, 1-1/2 hp, 1 min to 24 hr Run Setting
$292.38
In Stock
$292.38
DETAILS
Operating at 230 VAC and 1-½ horsepower, this sensor is designed to work seamlessly with all types of flexible auger feed delivery systems. It uses infrared technology to accurately detect feed levels, ensuring that your livestock gets the right amount of feed when they need it.
The sensor comes with six independent infrared beams that must be simultaneously interrupted to deactivate the switch. This makes it highly reliable and less prone to false triggers. The clear housing is not just for show; it serves as a protective lens against feed, dust, and moisture, ensuring long-term durability.
The digital display and push-button interface allow for quick and precise adjustments to timer settings. You can program the on-delay timer and maximum run timer to prevent short cycling and feed spills. The sensor even has an alarm contact that can be wired to your existing agri-alert or other on-site alarm systems, providing immediate notice for any feed-related issues.
- New from automated production systems
- Smart IR's removable feed sensor insert is designed for performance and serviceability
- It features six independent infrared beams which must be simultaneously interrupted to deactivate the switch
- The durable clear housing serves as a lens to protect the IR transmitters and receivers from feed, dust and moisture
- Smart IR's 20 A, 230 VAC internal relay allows the sensor to be installed on all makes of flexible auger feed delivery systems without modifications
- The smart IR utilizes infrared sensing technology to detect the level of feed and control all functions of your feed delivery system
- Smart IR's requires no sensitivity adjustment and is not affected by changes in temperature, humidity, moisture content or feed type
- Works on an angle with no problem
- Smart IR's digital display and push button interface allows quick and precise adjustments to timer settings and access to all feed system status information at a glance
- The large display is easily readable without entering the pen
- Smart IR's on delay timer delays the restart of the feed system for a programmable period of time to prevent the occurrence of potentially damaging feed system short cycling
- Smart IR's maximum run timer shuts down the feed delivery system after the system operates continuously for a predetermined period of time preventing costly feed spills and feed system wear caused by bridged or empty feed bins
- Smart IR's alarm contact can be wired to your agri-alert or other on site alarm system to provide immediate notice that the maximum run time has been exceeded indicating an out of feed event
SPECIFICATIONS
| Actuator Type | Pushbutton |
| Brand | AP® |
| Dimensions | 12 in H x 6.4 in W x 7.5 in D |
| Horsepower | 1-1/2 hp |
| Manufacturer Name | AP® |
| Size | 3.4 in ID x 3.5 in OD |
| Voltage Rating | 230 VAC |
| Featured | 1 |
SPECIFICATIONS
| Actuator Type | Pushbutton |
| Brand | AP® |
| Dimensions | 12 in H x 6.4 in W x 7.5 in D |
| Horsepower | 1-1/2 hp |
| Manufacturer Name | AP® |
| Size | 3.4 in ID x 3.5 in OD |
| Voltage Rating | 230 VAC |
| Featured | 1 |
