DETAILS
The Super Flo belt driven fans are some of the among powerful and efficient fans available in the market today.

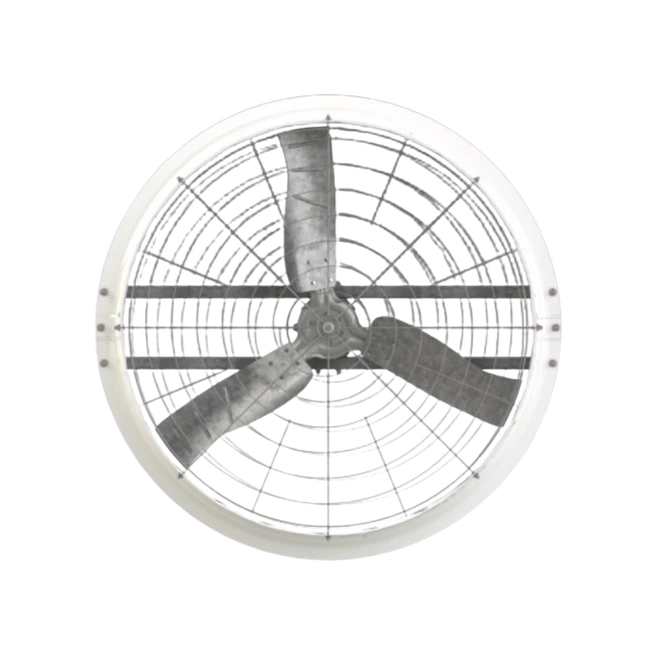

Their smooth bell shaped intake is designed for optimum performance and has a balanced exhaust opening for maximum air velocity and distance coverage. This 50 inch fan is constructed from fiberglass for a lightweight housing that is easier to handle than heavy metal housing fans. The fiberglass housing is corrosion-resistant and designed for durability in the harshest environments.

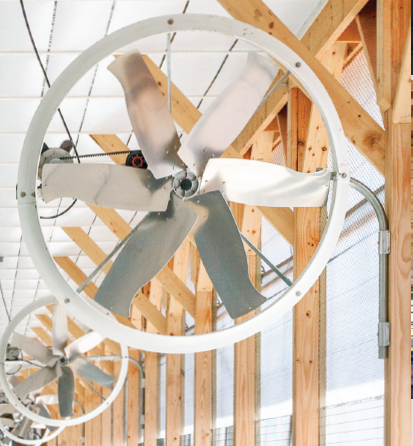

Utilize a high efficiency motor and cash in on environmental rebates with energy savings. This fan can work in a variety of barn ventilation strategies yet works particularly well in naturally ventilated barns to boost air circulation. Arctic Air panel circulation fans with a belt drive motor provide exceptional air flow which helps control insects, dry bedding, mitigate heat stress, and encourage cow health and production.
These fans are strategically constructed with high-grade corrosion-resistant fiberglass housing with a thick layer of UV protectant to prolong the fan’s life. The 1 phase AC motors are UL rated.
Super Flo 50” Belt Fan Key Features:
- Low speed delivers an incredible 100 cfm/W with a VES VFD
- Designed for optimum air throw and coverage
- Well balanced and strong blade design for years of trouble-free service
- Motors are totally enclosed, high efficiency with sealed ball bearing
- Easy to clean and corrosion-resistant fiberglass housing
- Quick change belt design
- On low speed you get an incredible 100 cfm/W with a VES VFD
- Easy to clean and has no corners for dirt or disease build-up
- Designed for optimum air throw and coverage
- Rebates available in many states
- New quick change belt
- Well balanced and strong blade design for years of trouble-free service
- Motors are totally enclosed, high efficiency with sealed ball bearing
- Fiberglass corrosion-resistant housing
SPECIFICATIONS
Standard/Approvals | CSA/CSAus Certified |
Application | For animal cooling in dairy or in environments needing corrosion resistance like swine and poultry |
Material | Fiberglass |
Type | Belt Drive |
Flow Rate | 21,500 cfm |
Voltage Rating | 230 VAC |
Horsepower | 1.5 hp |
Blade Diameter | 50 in |
Number of Speeds | 1 |
RPM | 400 |
Hertz | 60 |
