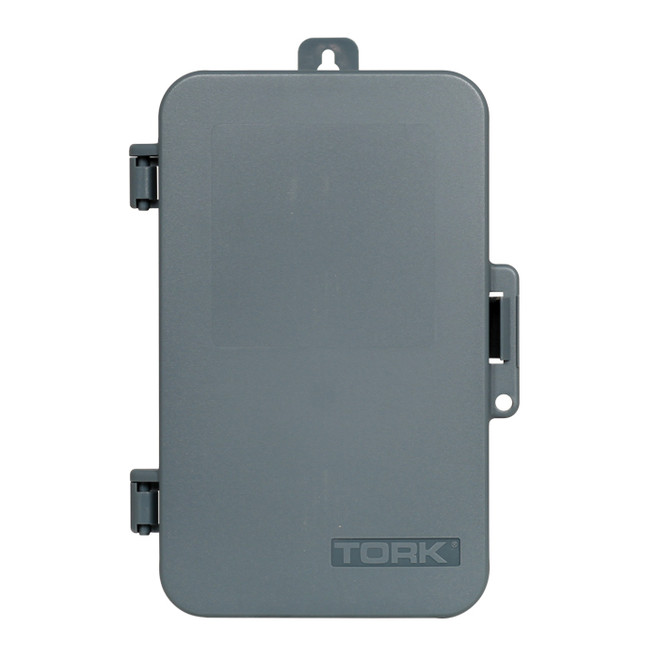

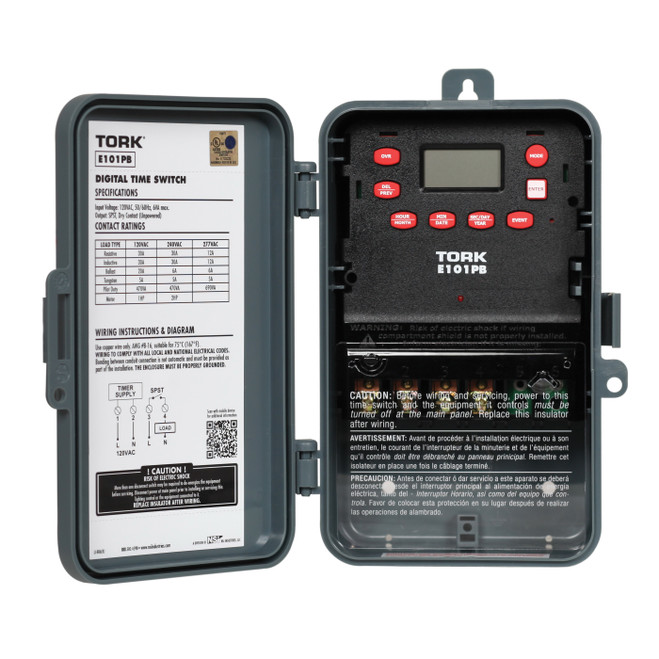

TORK® Digital Time Switch, 1 min to 24 hr Time Setting, 120/277 VAC, 1/2 hp
$111.68
In Stock
$111.68
DETAILS
The Tork® E101B digital timer can be used both indoors and outdoors, and has features ideal for a range of applications, including lighting, security systems, heating, and ventilation.
Designed to withstand temperatures ranging from -40F to 149F, and with automatic detection of input voltage ranging from 120-277VAC (50/60Hz), the E101B is equipped to handle all manner of environments.
Its rugged design and construction makes the E101B a digital barn time of choice for everything from heating to lighting systems for poultry and hog houses. With 20 ON & OFF set points for individual programs for each day of the week, it offers a highly customizable solution for managing multiple systems simultaneously.
Additional Tork® E101B features:
- 20 ON/OFF set points repeat each day, minimum setting 1 min scheduling
- Automatic daylight savings time
- Automatic compensation leap year
- Until the next regularly scheduled ON/OFF, automatic operation then resumes manual override
- AM/PM clock format
- Permanent schedule retention power, super capacitor provides 4 days of real time backup outage backup
- Inrush current limiting technology protects relay contacts for extended life with zero cross type switching
- 20 ON/OFF set points repeat each day, minimum setting 1 min scheduling
- Automatic daylight savings time
- Automatic compensation leap year
- Until the next regularly scheduled ON/OFF, automatic operation then resumes manual override
- AM/PM clock format
- Permanent schedule retention power, super capacitor provides 4 days of real time backup outage backup
- Inrush current limiting technology protects relay contacts for extended life with zero cross type switching
SPECIFICATIONS
| Amperage Rating | 40 A |
| Application | Indoor/Outdoor Lighting, Pumps and Compressors, Signs, Heating/Air Conditioning, Pools and Fountains, Commercial and Industrial |
| Brand | TORK® |
| Contact Form | SPST |
| Dimensions | 8-5/16 in H x 5-1/16 in W x 3-1/16 in D |
| Display | LCD |
| Enclosure Type | NEMA 3R |
| Horsepower | 1/2 hp |
| Manufacturer Name | TORK® |
| Mounting Type | Screw |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Operation Mode | On/Off |
| Standard/Approvals | cULus ListedCalifornia Title 24 CompliantUL 917 |
| Temperature Rating | -40 to 149 deg F |
| Time Setting | 1 min to 24 hr |
| Type | Digital |
| Voltage Rating | 120/277 VAC |
SPECIFICATIONS
| Amperage Rating | 40 A |
| Application | Indoor/Outdoor Lighting, Pumps and Compressors, Signs, Heating/Air Conditioning, Pools and Fountains, Commercial and Industrial |
| Brand | TORK® |
| Contact Form | SPST |
| Dimensions | 8-5/16 in H x 5-1/16 in W x 3-1/16 in D |
| Display | LCD |
| Enclosure Type | NEMA 3R |
| Horsepower | 1/2 hp |
| Manufacturer Name | TORK® |
| Mounting Type | Screw |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Operation Mode | On/Off |
| Standard/Approvals | cULus ListedCalifornia Title 24 CompliantUL 917 |
| Temperature Rating | -40 to 149 deg F |
| Time Setting | 1 min to 24 hr |
| Type | Digital |
| Voltage Rating | 120/277 VAC |
