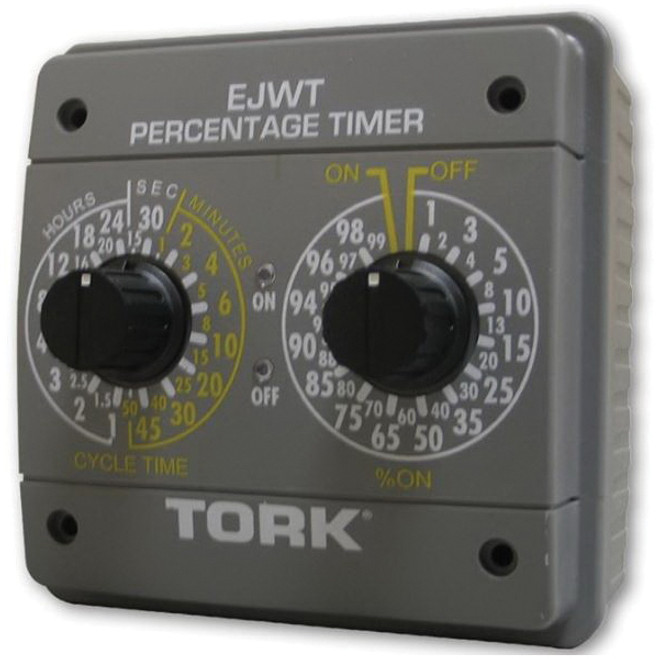

TORK® Adjustable Percentage Timer, 15 s to 24 hr Time Setting, 120 to 240 VAC, 1/4 hp, 1NO-1NC, SPDT Contact Form
$137.07
In Stock
$137.07
DETAILS
The Tork® EJWT features 960 possible time combinations with two dials, including repeating cycles from 15 seconds to 24 hours, and percentage ON from 0% to 100%.
The high level of variable on-time control is crucial for agricultural use cases, including heating, ventilation, and poultry lighting. Maintaining minute control over agricultural lighting and heating or cooling systems for a fine balance between production and efficiency is made easier with the EJWT.
Tork EJWT Percentage Timer Features:
- Repeats cycle as long as power is applied
- Percentage on dial has 32 steps from 0% to 100%
- PDT contacts provide NO and NC operation
- Load status indicated with 2-color LED
- Suitable for harsh environments
- 32 °F to 122 °F (0 °C to 50 °C) operating temperature
- NEMA 4x non-metallic indoor closure
- 960 time combinations with two dials, cycle time dial sets 32 repeating cycles from 15 s to 24 hr
- Repeats cycle as long as power is applied
- Percentage on dial has 32 steps from 0% to 100%
SPECIFICATIONS
| Application | Poultry and Livestock, Agriculture Or Greenhouses, Oil Well Pumping, Ventilation and Process Control |
| Brand | TORK® |
| Contact Form | 1NO-1NC, SPDT |
| Dimensions | 4-13/16 in H x 4-13/16 in W x 3-7/8 in D |
| Display | LED |
| Electrical Connection | Screw |
| Enclosure Type | NEMA 4X |
| Horsepower | 1/4 hp |
| Manufacturer Name | TORK® |
| Number of Poles | 1 |
| Standard/Approvals | UL ListedCSA Certified |
| Temperature Rating | 32 to 122 deg F |
| Time Setting | 15 s to 24 hr |
| Type | Adjustable |
| Voltage Rating | 120 to 240 VAC |
SPECIFICATIONS
| Application | Poultry and Livestock, Agriculture Or Greenhouses, Oil Well Pumping, Ventilation and Process Control |
| Brand | TORK® |
| Contact Form | 1NO-1NC, SPDT |
| Dimensions | 4-13/16 in H x 4-13/16 in W x 3-7/8 in D |
| Display | LED |
| Electrical Connection | Screw |
| Enclosure Type | NEMA 4X |
| Horsepower | 1/4 hp |
| Manufacturer Name | TORK® |
| Number of Poles | 1 |
| Standard/Approvals | UL ListedCSA Certified |
| Temperature Rating | 32 to 122 deg F |
| Time Setting | 15 s to 24 hr |
| Type | Adjustable |
| Voltage Rating | 120 to 240 VAC |
