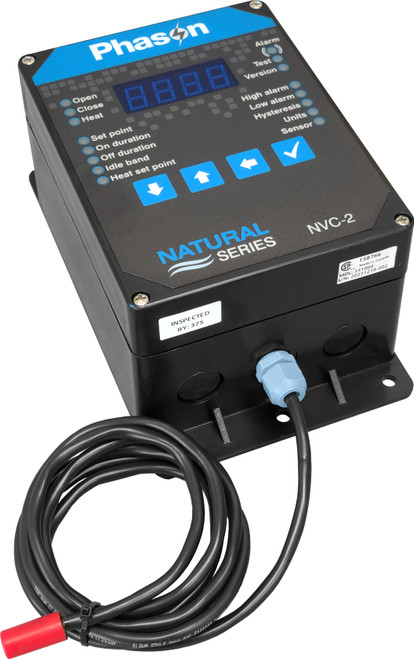

Phason NVC-2 Ventilation Control

SKU:
23080543
$456.89
In Stock
Vendor Part#:
NVC-2
$456.89
Vendor Part#:
NVC-2
Adding to cart… The item has been added
Hot DealsHOT DEALS

DETAILS

Effective curtain machine and heater control

The Natural Ventilation Control automatically controls the temperature in a room by operating a curtain machine and heater or furnace according to your programmed settings.

Controlling a curtain machine

  • When the temperature is within the idle band, the NVC-2 maintains the curtain position.
  • When the temperature rises above the idle band, the NVC-2 opens the curtain for the on duration and then pauses for the off duration.
  • After each off duration, the NVC-2 checks the temperature and then either opens or closes the curtain, depending on the temperature.

Controlling a heater

When the temperature is below the heat set point, the NVC-2 switches the heater on; when it is above the set point, the NVC-2 switches the heater off.

  • Automatic temperature-based control Range: -13 to 125°F (-25 to 51°C)
  • Six-step growth curve
  • Programmable On and Off durations for the open and close relays 1 to 900 seconds (up to 15 minutes)
  • Programmable Idle band 1.0 to 10.0°F (0.6 to 5.5°C)
  • Programmable heater hysteresis 0.3 to 5.0°F (0.2 to 2.8°C)
  • Programmable high and low temperature alarms
  • Two curtain relays (one open, one close)
  • Heater control relay
  • Alarm relay (for external alarm system)
  • Four-button keypad
  • Four-digit LED display
  • Programming and status LEDs
  • Manual override and test modes
  • Power-failure settings protection
  • Six-foot temperature sensor, extendable to 500 feet
  • Optional rain sensor
  • cCSAus approval

Open/close/heat relays

  • 15 A at 120/230 VAC, resistive load
  • 1/2 HP at 120 VAC, 1 HP at 230 VAC

Alarm relay

  • 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load
  • 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load

SPECIFICATIONS

Brand Phason
Power Rating 85 to 264 VAC, 50/60 Hz

Want More Information?

Talk to a Pro: 1-800-845-3374

SPECIFICATIONS

Brand Phason
Power Rating 85 to 264 VAC, 50/60 Hz
