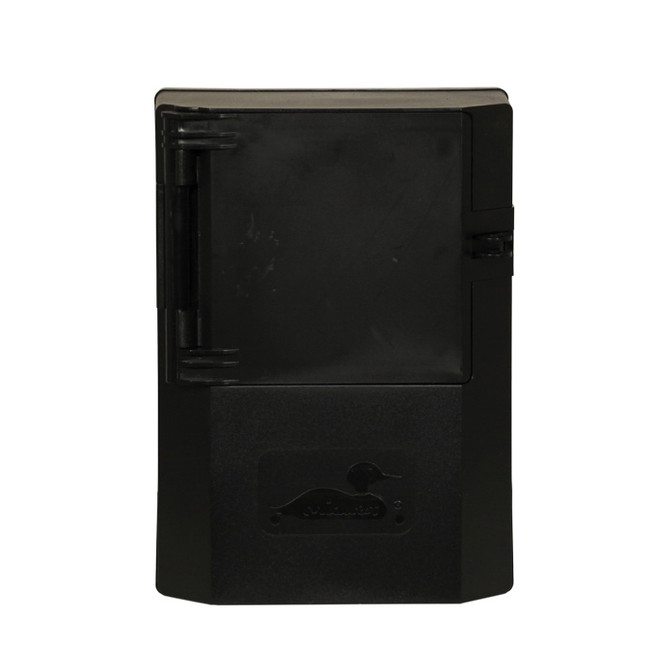

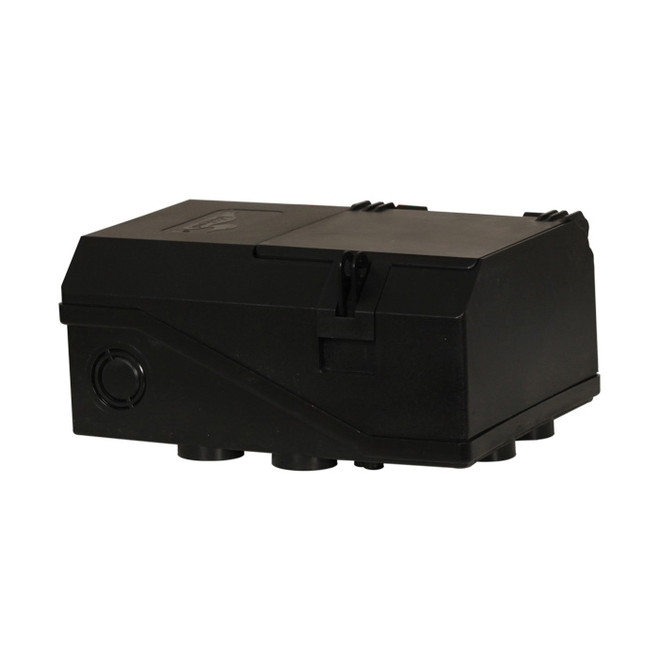

Non-Fusible 2-Poles Pull-Out AC Disconnect Switch
$27.98
In Stock
$27.98
DETAILS
Midwest electric products leads the industry with quality weatherproof electrical equipment.
Our NEMA 3R air conditioner disconnect line is the largest offering in the industry and is built with the same quality features which are found in all Midwest products.
The National electrical code requires that a disconnecting means shall be located within sight from and readily accessible from the air-conditioning or refrigerating equipment.
All Midwest models provide the disconnecting function specified in NEC 440-14.
The type of equipment and local codes determine which type of disconnecting means is acceptable.
- Padlock provision on door to prevent unauthorized access
- Noryl thermoplastic enclosure is corrosion-resistant and extremely durable, giving long maintenance-free service
- G90 galvanized steel with highest quality electro-deposition finish resists corrosion and fading
- Non-fusible disconnect pullers are removable or reinstalled in the off position for user safety during equipment maintenance
- 120/240 VAC, 60 A, 10 hp
SPECIFICATIONS
| Amperage Rating | 60 A |
| Brand | Midwest® |
| Dimensions | 8 in H x 5-3/4 in W x 3-1/8 in D |
| Enclosure Type | NEMA 3R |
| Horsepower | 10 hp |
| Manufacturer Name | Midwest Electric Products |
| Material | Thermoplastic |
| Mounting Type | Surface |
| Number of Poles | 2 |
| Phase | 1 |
| Standard/Approvals | UL Listed|cULus Listed |
| Type | Air Conditioner Non-Fusible Pull-Out |
| Voltage Rating | 120/240 VAC |
| Related Products | 23990005 |
SPECIFICATIONS
| Amperage Rating | 60 A |
| Brand | Midwest® |
| Dimensions | 8 in H x 5-3/4 in W x 3-1/8 in D |
| Enclosure Type | NEMA 3R |
| Horsepower | 10 hp |
| Manufacturer Name | Midwest Electric Products |
| Material | Thermoplastic |
| Mounting Type | Surface |
| Number of Poles | 2 |
| Phase | 1 |
| Standard/Approvals | UL Listed|cULus Listed |
| Type | Air Conditioner Non-Fusible Pull-Out |
| Voltage Rating | 120/240 VAC |
| Related Products | 23990005 |
