Galvanized Metal Feed Bins

Call for Price - 800-845-3374

Call for Price - 800-845-3374

DETAILS

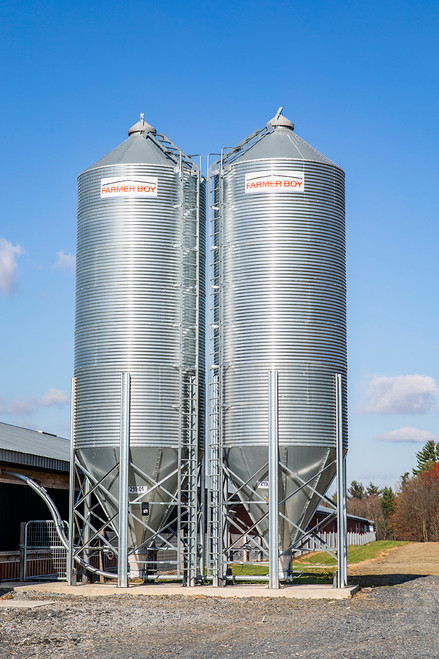

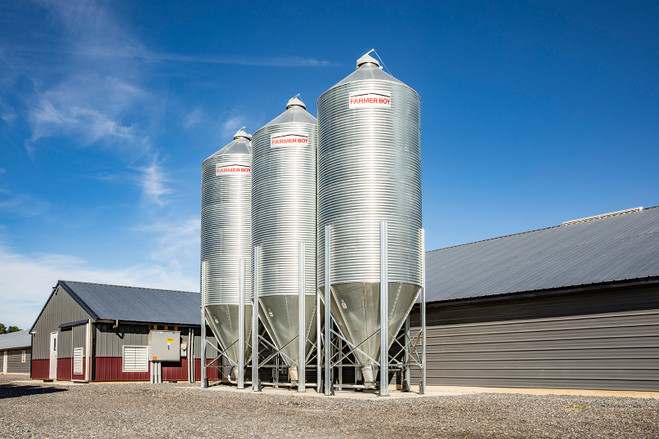

Farmer Boy's Bulk Feed Tanks perfectly illustrate the attention to detail that quality demands. Every component is made from the finest raw materials available. Each stage of the forming process, from corrugation to die-cut shaping to precision finishing, is done under one roof and under our direct control and supervision.

The bulk feed tanks are designed for free-flowing material only. Soybean meal, meat scraps, and many other materials that are not free-flowing should not be stored in these tanks without agitation. If you have questions regarding the flowability of a material you intend to use, please call and speak to one of our salesmen.

Structural Integrity - Hopper slopes are available in 60° and 67° in either a 16” or 22” hopper opening. Rounded corners and down-turned sealing edges add safety and promote a weather-tight fit. Rounded, truss-head bolts reduces content bridging. Depending on the tank size, single or dual galvanized X-bracing is used to provide solid support and stability.

The high tensile steel sidewall sheets are made with a G-90 galvanized coating for strength and durability. The 2-2/3" (968mm) wide by 1/2" (13mm) deep panel curvature is tooled and shaped in-house for easy assembly.
Feed tanks (6’, 7’, 9’ and 12’) are fitted with 12 ga. steel hopper collars, 30% stronger than the industry standard (14 ga.) collar.
Durable auto-lock tank lid with reinforced rubber belting bumper. Swings a full 180° eliminating interference with fill augers
Drip lip water deflection where sidewall sheets meet hopper

Drip lip water deflection design is a one-of-a-kind, roll-formed bottom sheet edge. It forces water away from the hopper and lower boot area, giving complete weather protection without a loss in capacity.

Zinc dichromate bolts and nuts with rubber sealing washer
Reinforcing ribs at each roof seam for added strength
Reinforced Bin Roof - Cumberland offers your choice of a 30 degree or 40 degree bin roof to adapt to any application. Roof panels are precision manufactured with die-form tooling to provide consistent quality. Both 30 degree and 40 degree roofs feature reinforcing ribs at each roof seam for added strength and rigidity.
Hopper connections are specially die-formed to conform to the shape of the sidewall corrugation. This eliminates corrosion-prone distortion and dimpling often found in other manufacturers’ methods of connection requiring crimping and forced bolt pressure.
Bin Lid - Hopper connections are specially die-formed to conform to the shape of the sidewall corrugation. This eliminates corrosion-prone distortion and dimpling often found in other manufacturers’ methods of connection requiring crimping and forced bolt pressure.
