Edstrom 1/2" Piglet Nipple for Drinkers
DETAILS

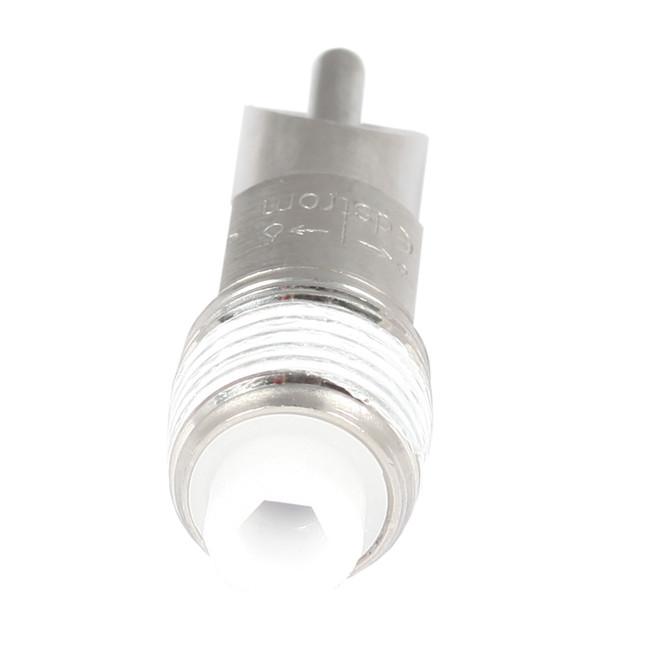

Made from durable 303 stainless steel, this ½” piglet drinker nipple from Edstrom features a simple, rugged, reliable design that provides years of trouble-free service.
Engineered for simplicity, the nipple is free from springs or orifices to clog. For added adaptability, the nipple features an adjustable flow rate and use-activated water dispersal. To drink, the pig simply moves the stem by biting on it. When it removes its mouth, the stem returns to its closed position by the elastic force of the silicone rubber diaphragm.
The diaphragm can be flexed thousands of times without failure and is not subject to breakdown from corrosion or mineral buildup. The replaceable O-ring seal provides a positive water shut-off. To protect the O-ring seal in the nipple from damage by sand and/or particulate contamination, the water supply to the nipples should be filtered with a 200 mesh filter or finer.
½” Piglet Nipple Drinker Features:
- Calibrated to discharge 1.5 pints per min at 40 PSI
- All Edstrom nipple waterers have a ½” male pipe thread (MPT) connection, which comes pre-wrapped with PTFE tape for quick installation
- Operates on gravity or pressure systems upto 50 PSI
- Adjustable flow rate controlled by the tightness of the retainer screw
SPECIFICATIONS
Brand | Edstrom |
End Style | MNPT |
Manufacturer Name | Edstrom |
Material | 303 Stainless Steel |
Nominal Size | 1/2 in |
Pressure Rating | 0 to 50 psi |
Related Products | 12020006 |
Remarks | Contents Updated |
Suitable For Use With | 4 to 8 Weeks Nursery Piglets |
