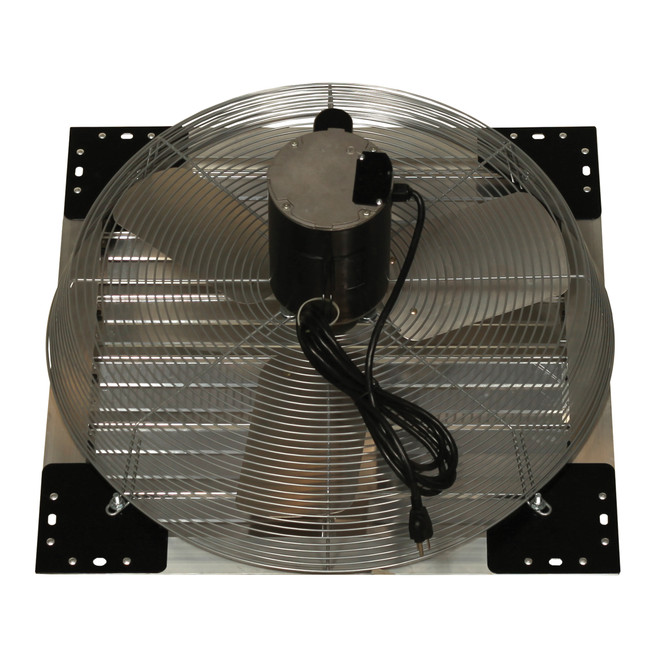

24 Inch Variable Speed 1/2 HP Exhaust Fan
$306.24
In Stock
$306.24
DETAILS
Balanced blades, an aluminum body and shutters, and a fully enclosed ½ HP motor make this exhaust fan a powerful and durable option for improving air flow.
The heavy duty high efficiency motor is designed to work in the harshest environment. Additionally, the heavy aluminum blades are quiet, balanced, and precision engineered to generate the largest air flow.
The fan ships fully assembled for simple installation. Fan must be mounted 7 ft above ground level on the exhaust side
24 Inch Exhaust Fan with Shutters Features:
- Motor is totally enclosed maintenance-free, high efficiency, sealed ball bearings
- Motor enclosures have been machined to <0.5mm to reduce rotor shaft play; rotors have been balanced to reduce noise vibration and prolong life
- Comes with 110 Volt 9 ft cord attached; motor Can be wired 110 Volt and 220 Volt
- Corrosion-resistant aluminum shutter with tie bar to reduce shutter flapping and opening on windy days
- Safety chrome grill on intake side meets OSHA standards
- Follow NEMA standards 48
- Capacitor rating 450 VAC, 10000 hrs for extended life
- Silicon steel rotors and stators
- Totally assembled
- Copper winding
*** These Fans can only be variable speed when they are wired into a control ***
SPECIFICATIONS
| Standard/Approvals | UL/cUL ListedCSA/CSAus CertifedOSHA Approved |
| Application | Agricultural, Horticultural, Factories, Warehouses, Garages, Attics and Restaurants |
| Material | Aluminum |
| Type | Direct Drive Variable Speed |
| Flow Rate | 6250 cfm |
| Voltage Rating | 115 VAC |
| Horsepower | 1/2 hp |
| Blade Diameter | 24 in |
| CFM at 0.0 SP Hi/Med/Low | 5625/1970 |
| CFM at 0.1 SP Hi/Med/Low | 4690/1640 |
SPECIFICATIONS
| Standard/Approvals | UL/cUL ListedCSA/CSAus CertifedOSHA Approved |
| Application | Agricultural, Horticultural, Factories, Warehouses, Garages, Attics and Restaurants |
| Material | Aluminum |
| Type | Direct Drive Variable Speed |
| Flow Rate | 6250 cfm |
| Voltage Rating | 115 VAC |
| Horsepower | 1/2 hp |
| Blade Diameter | 24 in |
| CFM at 0.0 SP Hi/Med/Low | 5625/1970 |
| CFM at 0.1 SP Hi/Med/Low | 4690/1640 |
