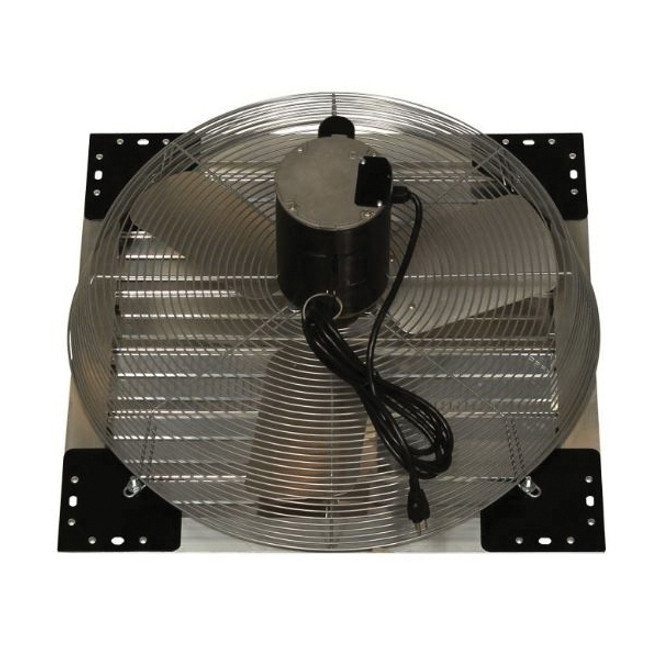

16 Inch Variable Speed 1/10 HP Exhaust Fan
$209.29
In Stock
$209.29
DETAILS
Housed in corrosion resistant extruded aluminum, this all-metal shuttered exhaust fan measures 16 inches in diameter.
A high performance motor and balanced blades make this an efficient option for improving airflow inside your livestock barns. Meanwhile, the fully enclosed motor is designed to work in the harshest environment.
Rounding out the fan, the intake guard is powder coated, safe, and strong. The balanced blades and matching designed motor combination makes this fan series very energy efficient.
16 Inch Variable Exhaust Fan Features:
- Ships fully assembled
- Comes with 110 Volt 9 ft cord attached; Motor Can be wired 110 Volt and 220 Volt
- Motor is totally enclosed maintenance-free, high efficiency, sealed ball bearings
- Motor enclosures have been machined to <0.5mm to reduce rotor shaft play
- Rotors have been balanced to reduce noise vibration and prolong life
- Corrosion-resistant aluminum shutter with tie bar to reduce shutter flapping and opening on windy days
- Safety chrome grill on intake side meets OSHA standards
- Fan must be mounted 7 ft above ground level on the exhaust side
- Capacitor rating 450 VAC, 10000 hrs for extended life
- Silicon steel rotors and stators
- Follow NEMA standards 48
- Copper winding
*** These Fans can only be variable speed when they are wired into a control ***
SPECIFICATIONS
| Standard/Approvals | UL/cUL ListedCSA/CSAus CertifedOSHA Approved |
| Application | Agricultural, Horticultural, Factories, Warehouses, Garages, Attics and Restaurants |
| Material | Aluminum |
| Type | Direct Drive Variable Speed |
| Flow Rate | 1890/660 cfm |
| Voltage Rating | 115 VAC |
| Horsepower | 1/10 hp |
| Blade Diameter | 16 in |
| CFM at 0.0 SP Hi/Med/Low | 1890/660 |
| CFM at 0.1 SP Hi/Med/Low | 1575/550 |
