Stenner Pump® Control Module for Adjustable Stenner Pump
$223.33
In Stock
$223.33
DETAILS

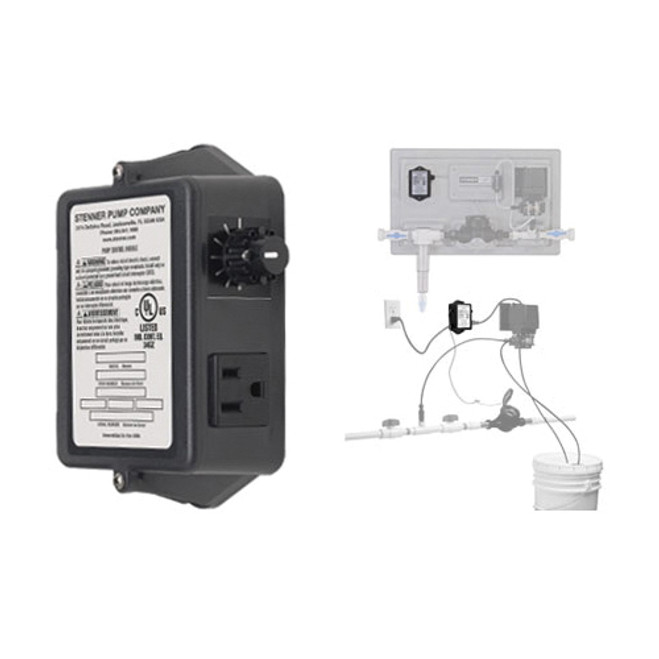

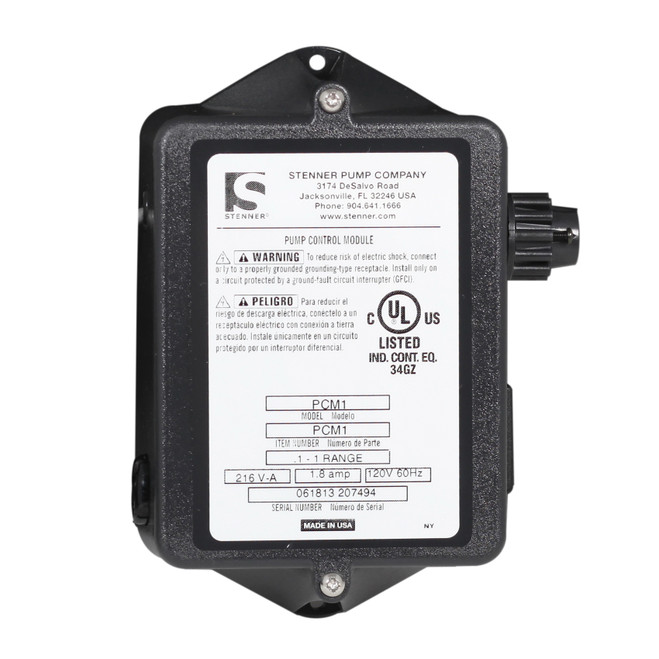

Featuring a polycarbonate housing, the Stenner Pump® Control Module is a time adjustable controller that powers a fixed output pump. It operates with a pulsing dry contact water meter that sends a signal to the pump control module (PCM) which actuates the pump to deliver the desired dose based upon water volume.

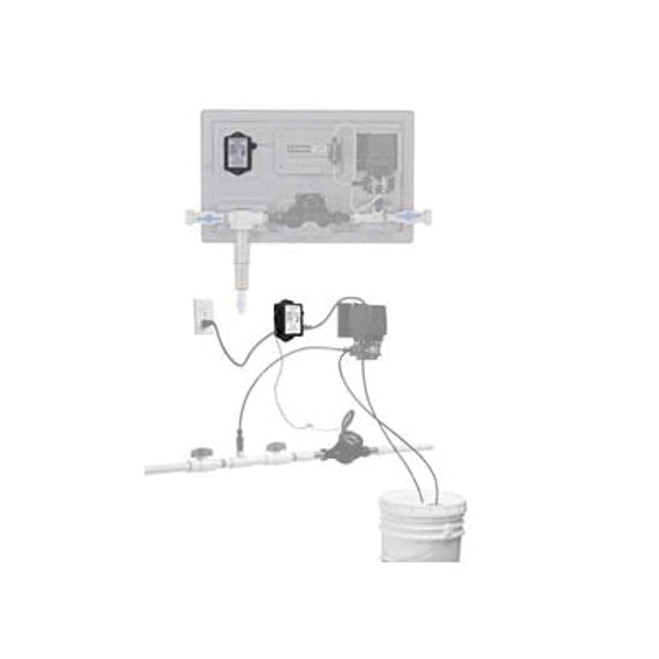

A PCM is one of the components in the proportional injection system that also includes the Stenner Classic Series single head fixed output pump and a 3/4 in plastic water meter pre-installed on a heavy duty panel.
The PCM operating time range is factory set according to the specific model selected, but it can be converted to any of the other available time ranges, so it is not necessary to purchase another model. The time range is converted by changing the position of the jumpers on the printed circuit board located under the PCMs cover. The PCM manual contains the instructions.
Additional Stenner Pump® Control Module details:
- Time adjustable pump controller
- Deliver accurate dosing based on water volume
- Factory set time range can be converted via position of the jumpers
- Features a polycarbonate plastic housing for durability
SPECIFICATIONS
| Brand | STENNER PUMP® |
| Manufacturer Name | STENNER PUMP® |
| Material | Polycarbonate |
| Specifications | 120 VAC, 60 Hz, 0.1 to 1 s Operating Range |
| Standard/Approvals | cULus Listed |
| Suitable For Use With | Adjustable Pump |
SPECIFICATIONS
| Brand | STENNER PUMP® |
| Manufacturer Name | STENNER PUMP® |
| Material | Polycarbonate |
| Specifications | 120 VAC, 60 Hz, 0.1 to 1 s Operating Range |
| Standard/Approvals | cULus Listed |
| Suitable For Use With | Adjustable Pump |
