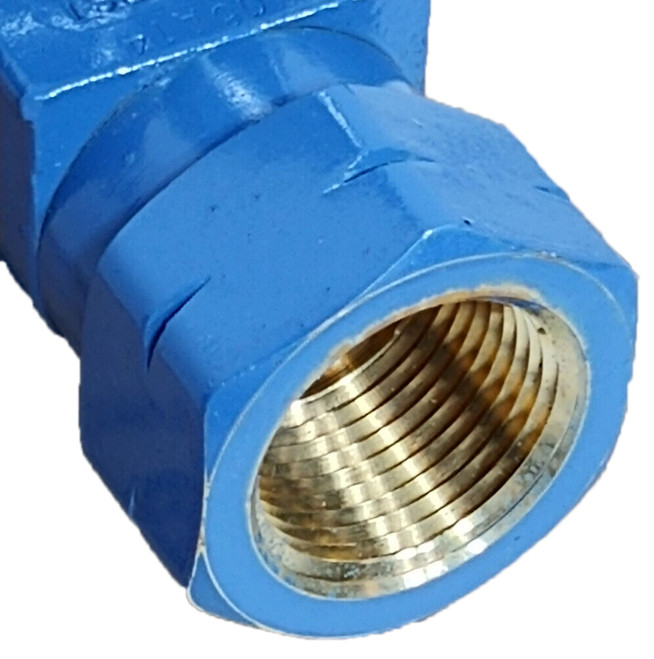

RegO® LV5503Y6 Second Stage Gas Regulator, For Use With 2 psi System, Die Cast Zinc, Blue
$112.45
In Stock
$112.45
DETAILS
- Large vent helps prevent blockage and has 3/4 in FNPT for vent piping
- With 15 psig inlet pressure, regulator is designed to not pass more than 5 psig with the seat disc removed
- Incorporates an integral relief valve
- Replaceable valve orifice and valve seat disc
- Straight line valve closure reduces wear on seat disc
- Unique bonnet vent profile minimizes vent freeze over when properly installed
- Large molded diaphragm is extra sensitive to pressure changes
- Built in pressure tap has plugged 1/8 in FNPT outlet
- Plug can be removed with a 3/16 in hex allen wrench
SPECIFICATIONS
| Color | Blue |
| Specifications | 1/2 in FNPT Inlet/Outlet Connection, 1/4 in Orifice, 1000000 Btu/hr Propane Capacity |
| Standard/Approvals | UL Listed |
| Suitable For Use With | 2 psi System |
SPECIFICATIONS
| Color | Blue |
| Specifications | 1/2 in FNPT Inlet/Outlet Connection, 1/4 in Orifice, 1000000 Btu/hr Propane Capacity |
| Standard/Approvals | UL Listed |
| Suitable For Use With | 2 psi System |
