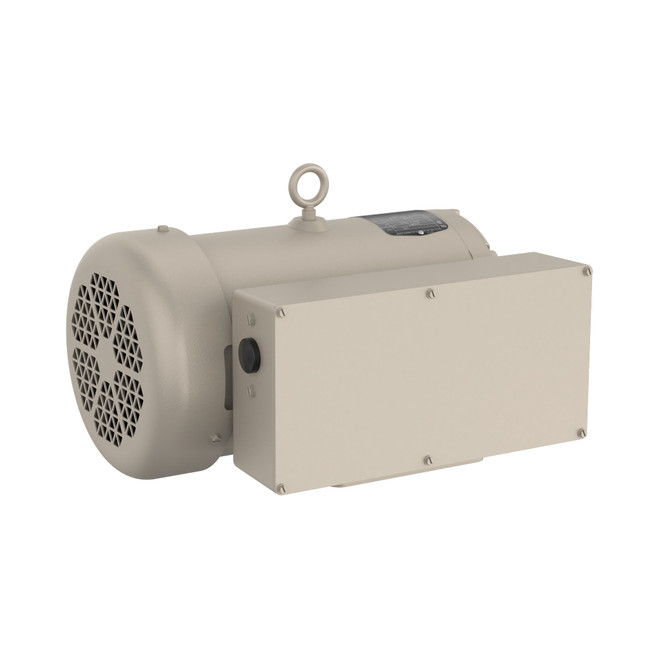

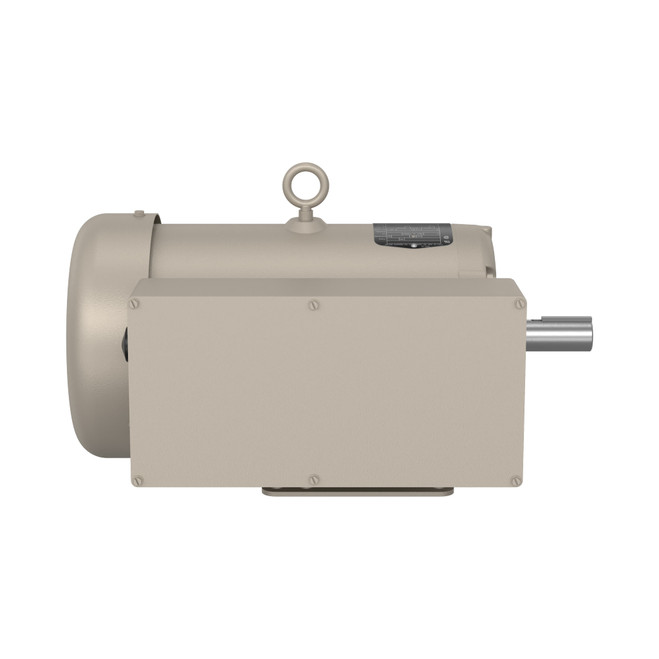

Marathon® 5 HP 1 1/8 Inch Shaft Utility Auger Motor, 1 Phase
SKU:
23040060
Write a Review
Write a Review
Marathon® 5 HP 1 1/8 Inch Shaft Utility Auger Motor, 1 Phase
$899.32
- 300% and greater starting torque for hard to start applications
- 1.15 service factor, class f insulation
- Capacitor start/capacitor run design for reduced amperage
- Manual reset thermal protector
- Totally enclosed and fully gasketed construction for dirty environments
| Amperage Rating | 22.6 A |
| Application Type | Farm Duty/Agriculture |
| Bearing Type | Ball |
| Brand | Cumberland |
| Dimensions | 18.34 in L |
| Enclosure Type | IP43 |
| Frame | 213TZ |
| Frequency Rating | 60 Hz |
| Horsepower | 5 hp |
| Includes | Condensate Drains and Shaft Slinger |
| Manufacturer Name | Cumberland |
| Material | Rolled Steel |
| Mounting Type | Rigid Base |
| Phase | 1 |
| Related Products | 10041331 |
| Remarks | Contents Updated |
| Shaft Size | 1.125 in Dia x 3.47 in L |
| Speed | 1750 rpm |
| Standard/Approvals | UL Listed|CE Marked|CSA Certified |
| Temperature Rating | 40 deg C |
| Type | 4-Pole Extra High Torque |
| Voltage Rating | 230 VAC |
