Liquid Propane / Natural Gas Appliance Regulator

SKU:
14020853
$58.82
In Stock
$58.82
Adding to cart… The item has been added
Hot DealsHOT DEALS

DETAILS

The N5 series regulator is a certified CSA 6.22/ANSI Z21.80 self-operating regulator with vent limiting option for use in residential, commercial and industrial applications.

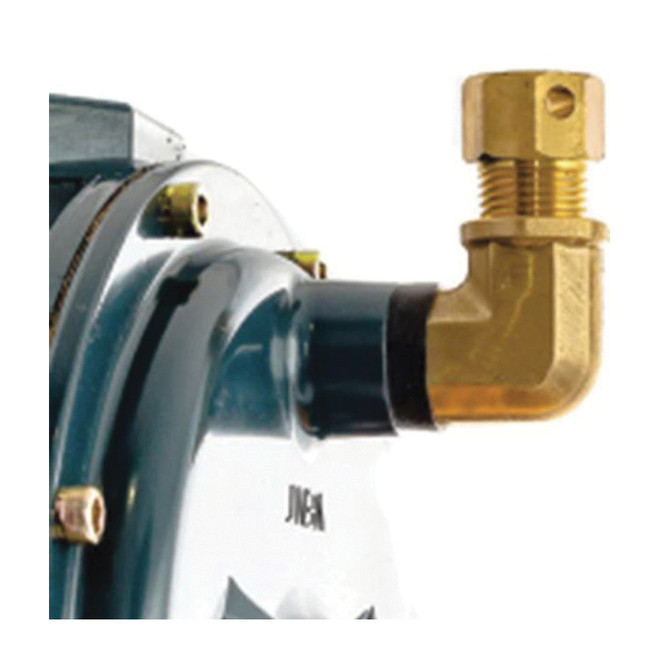

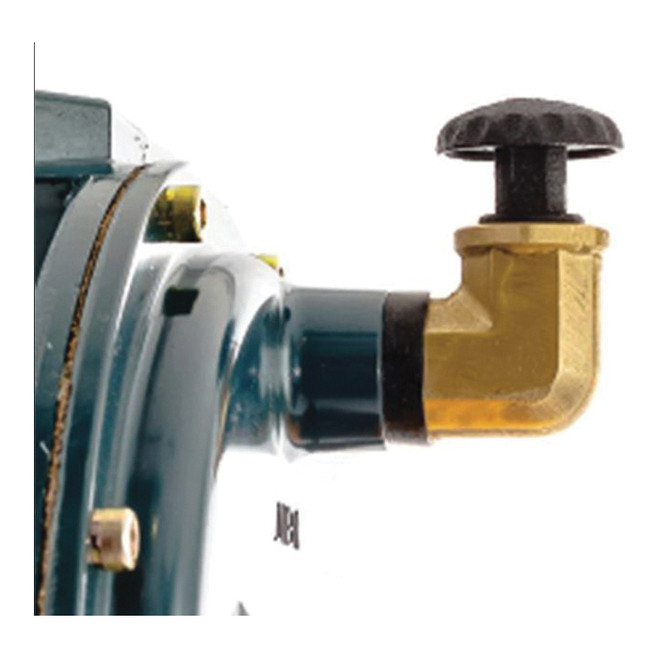

The NS vent limiting option allows for indoor use without the need to pipe external vent lines.

With the added benefit of extended corrosion resistance the NS allows for various applications where the best regulation performance is required.

  • Vent limiter option
  • Multi-position installation
  • Extended corrosion resistance

SPECIFICATIONS

Application Residential, Commercial and Industrial
Dimensions 5-1/2 in L x 6 in W
Finish Epoxy Coated
Material Aluminum
Remarks Contents Updated
Series N5 Series
Specifications 2 to 15 psig Maximum Inlet Pressure, 3/8 to 2 in NPT, 85 psig Maximum Emergency Inlet Pressure
Standard/Approvals CSA 6.22|ANSI Z21.80
Type Self-Operating
With With Vent Limiter

Want More Information?

Talk to a Pro: 1-800-845-3374

SPECIFICATIONS

Application Residential, Commercial and Industrial
Dimensions 5-1/2 in L x 6 in W
Finish Epoxy Coated
Material Aluminum
Remarks Contents Updated
Series N5 Series
Specifications 2 to 15 psig Maximum Inlet Pressure, 3/8 to 2 in NPT, 85 psig Maximum Emergency Inlet Pressure
Standard/Approvals CSA 6.22|ANSI Z21.80
Type Self-Operating
With With Vent Limiter
