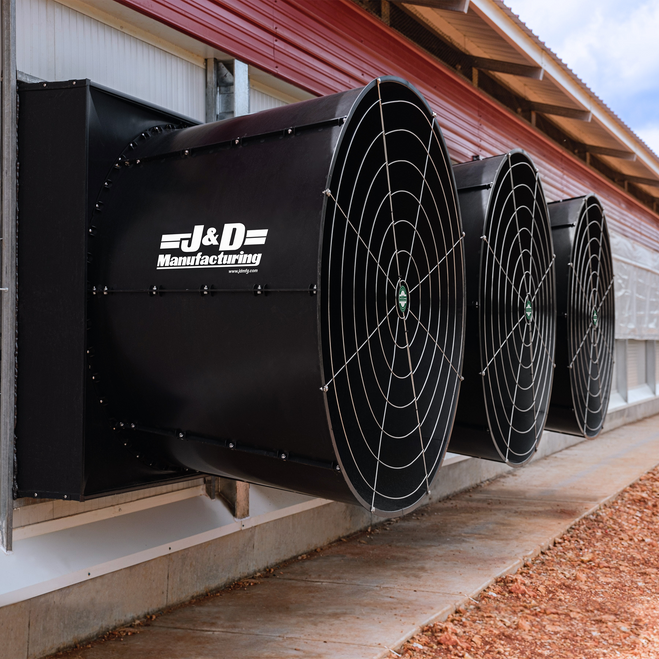

J&D Manufacturing Magnum 58" Exhaust Fan
Call us at 1-800-845-3374
Call us at 1-800-845-3374
DETAILS
The Magnum Exhaust Fan is a 58" fan that features a direct drive, permanent magnet motor which is practically maintenance free. It eliminates the need for greasing bearings and changing belts. The housing is made of strong polypropylene while the frame is all stainless-steel preventing rust and corrosion in any environment. The complete fan includes poly damper doors that seal out air and light when closed.
The Magnum Exhaust Fan is designed to operate in the full range from minimum winter ventilation to maximum power using basic 0-10 volt control relays which eliminates the need for smaller fans. Because of the high performance of the Magnum Exhaust Fan, you’ll use 25% fewer fans on your next project, making it your most economical choice. Perfect for dairy ventilation, poultry ventilation, and many other applications.
Key Features:
- Up to 75% energy savings over traditional fans
- 41,470 CFM @.10” SP
- Direct Drive
- Driver built in so no additional costs for separate units
- Soft start for long life and efficiency
- Variable speed ready
- 360° rubber sealed damper door
- Perfect addition to your swine, poultry, greenhouse, industrial, or dairy ventilation system
The Magnum 58″ Exhaust Fan is designed to operate between 0.00″ SP – 0.30″ SP, and less than 40°C ambient air temperature.
Applications:
- Dairy
- Greenhouse
- Industrial
- Poultry
- Swine
SPECIFICATIONS
| Brand | J&D Manufuacturing |
| Size | 58" |
| HP | 2.2 kw |
| HZ | 60 |
| Phase | Available in 1 or 3 |
| RPM | 600 |
| Drive | Direct Drive |
| Propeller Material | Stainless Steel |
| Air Flow Ratio | 0.83 |
| Shutter | Poly Damper Doors |
| Cone | Poly |
| Housing Material | Poly |
| Rough-In Dimensions | 65.25" W x 65.25" H |
