DETAILS

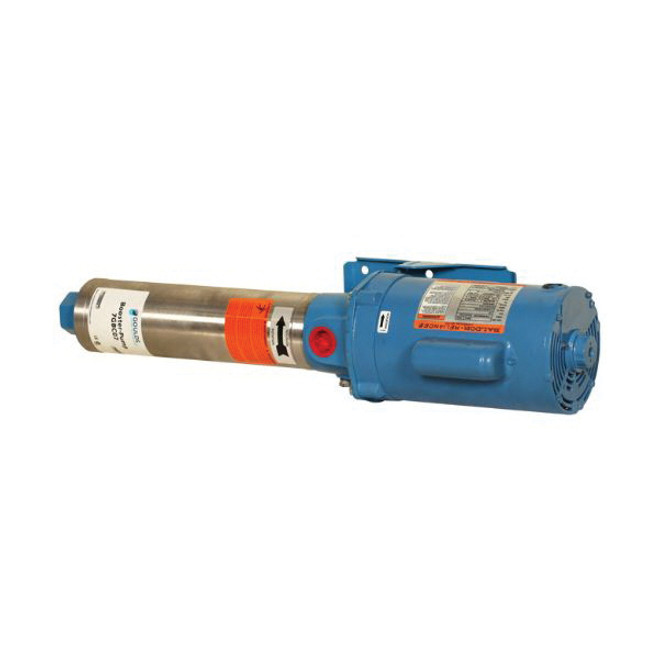

The Goulds Pump ¾ Horsepower (HP) Booster Pump is easy to install and use. It can be connected to a variety of water sources, including wells and municipal water supplies, and can be installed in-line with your existing barn plumbing system.
With a maximum flow rate of 7 gallons per minute (GPM), you can rest assured that your animals will have a consistent and reliable source of clean and fresh water.
The pump's compact design also makes it easy to install in tight spaces, allowing you to optimize your available space. And thanks to its durable construction, you can trust that the pump will continue to provide reliable service for years to come, even in the harshest of conditions.
Goulds Pump ¾ HP Booster Pump Features:
- Multi-stage design for steady, quiet, vibration-free operation
- O-ring casing seal for reliable, high-pressure sealing and easy maintenance
- Impellers and diffusers made of glass-filled composite material for high resistance to corrosion and abrasion
- 300 stainless steel rabbit lock bowls for positive alignment and no gasket required
- Centrifugal pump design with variable capacity for flow selection
- Mechanical seal with various face materials and elastomers for application needs
- Close-coupled NEMA 56J motors in open drip-proof or totally enclosed design
- Continuous operation capability
- Ball bearings for radial and axial thrust load support
SPECIFICATIONS
Brand | Goulds |
Manufacturer Name | Goulds |
Standard/Approvals | UL ListedCSA CertifiedCE Certified |
Application | Residential, Commercial or Agricultural Pressure Wash, Reverse Osmosis, Evaporative Cooling Systems/Misters, Booster Service, Spray Systems, Water Circulation, Filtration, HVAC and General Purpose Pumping |
Series | GB Series |
Material | Cast Iron |
Type | 1-Phase 12-Stage |
Temperature Rating | 160 deg F |
Flow Rate | 7 gpm |
Dimensions | 27-1/16 in L x 6-1/16 in W x 5-3/4 in H |
Inlet Size | 1 in NPT |
Voltage Rating | 115 to 230 VAC |
Power Rating | 3/4 hp |
Amperage Rating | 6.4/12.8 A |
Bearing Type | Ball |
Frequency Rating | 60 Hz |
Mounting Type | Wall |
Enclosure Type | Open Dripproof |
Impeller Type | Glass Filled Engineered Composite |
Maximum Head | 500 ft |
Maximum Pressure | 75 psi |
Maximum Suction Lift | 10 ft |
Outlet Size | 1 in NPT |
Motor Speed | 3500 rpm |
