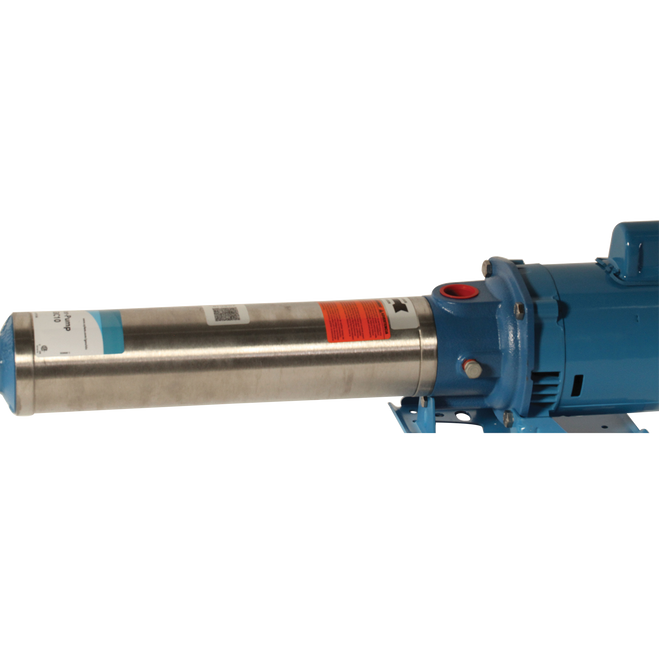

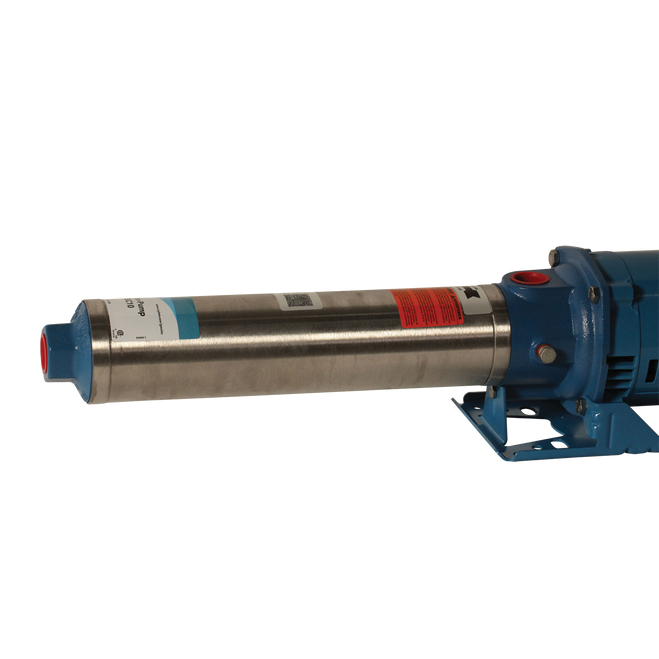

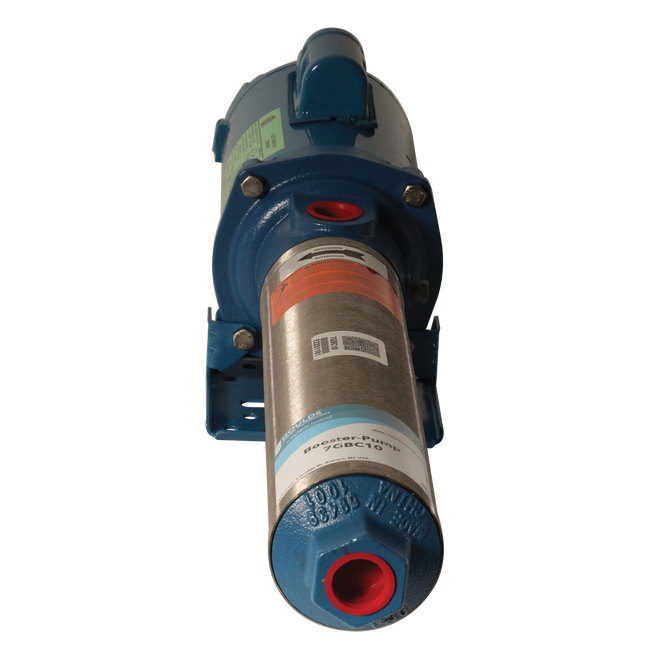

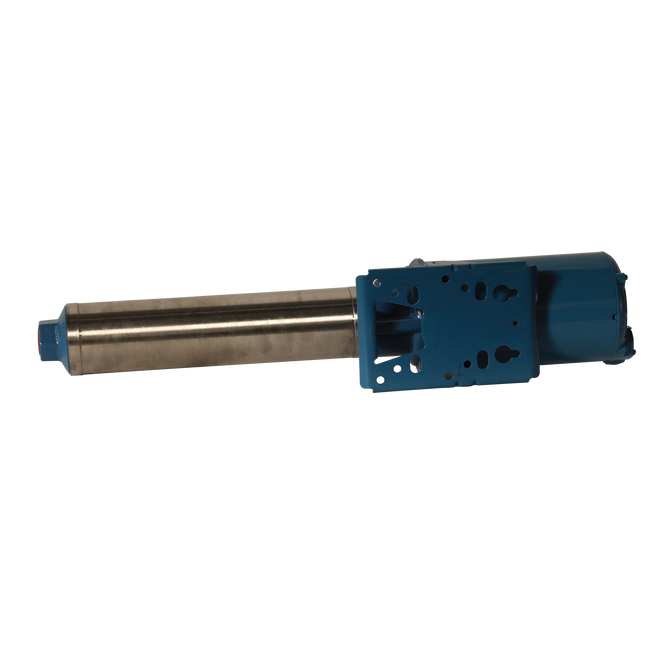

Goulds Pump 1 HP Booster Pump - 7 GPM
Add to Cart For Price
In Stock
DETAILS
The Goulds 1HP Booster Pump is designed for use in agricultural and industrial applications where a consistent water supply is needed.
The pump has a 1 horsepower (HP) motor and is capable of pumping up to 7 gallons per minute (GPM), making it a reliable option for supplying water to livestock, crops, or irrigation systems. It is constructed from durable materials, including a cast iron casing and stainless steel impeller to hold up against everyday use on the farm.
This booster pump can be used with a water storage tank or other water source by drawing water boosting the pressure to the desired level for distribution. This ensures a consistent and reliable water supply for your livestock or irrigation needs.
Goulds 1 HP Booster Pump, 7 GPM Features:
- Multi-stage design - provides steady, quiet, vibration-free, operation
- O-ring casing seal-reliable high pressure sealing with easy disassembly for maintenance or repair
- Impellers and diffusers - glass filled engineered composite material with floating impeller design
- High resistance to corrosion and abrasion
- Bowls-300 stainless steel rabbit lock for positive alignment with no gasket required
- Variable capacity-centrifugal pump design permits selection of flow within a range for each size
- Mechanical seal - a variety of face materials and elastomers to match application needs
- Motors - close coupled NEMA 56J motors in open drip proof or totally enclosed design
- Designed for continuous operation
- Ball bearings carry all radial and axial thrust loads
- Multi-stage design - provides steady, quiet, vibration-free, operation
- O-ring casing seal-reliable high pressure sealing with easy disassembly for maintenance or repair
- Impellers and diffusers - glass filled engineered composite material with floating impeller design
- High resistance to corrosion and abrasion
- Bowls-300 stainless steel rabbit lock for positive alignment with no gasket required
- Variable capacity-centrifugal pump design permits selection of flow within a range for each size
- Mechanical seal - a variety of face materials and elastomers to match application needs
- Motors - close coupled NEMA 56J motors in open drip proof or totally enclosed design
- Designed for continuous operation
- Ball bearings carry all radial and axial thrust loads
SPECIFICATIONS
| Brand | Goulds |
| Manufacturer Name | Goulds |
| Standard/Approvals | UL ListedCSA CertifiedCE Certified |
| Application | Residential, Commercial or Agricultural Pressure Wash, Reverse Osmosis, Evaporative Cooling Systems/Misters, Booster Service, Spray Systems, Water Circulation, Filtration, HVAC and General Purpose Pumping |
| Series | GB Series |
| Material | Cast Iron |
| Type | 1-Phase 16-Stages |
| Temperature Rating | 160 deg F |
| Flow Rate | 10 gpm |
| Dimensions | 27-1/16 in L x 6-1/16 in W x 5-3/4 in H |
| Inlet Size | 1 in NPT |
| Voltage Rating | 115 to 230 VAC |
| Power Rating | 1 hp |
| Amperage Rating | 6.4/12.8 A |
| Bearing Type | Ball |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall |
| Enclosure Type | Open Dripproof |
| Impeller Type | Glass Filled Engineered Composite |
| Maximum Head | 500 ft |
| Maximum Pressure | 75 psi |
| Maximum Suction Lift | 10 ft |
| Outlet Size | 1 in NPT |
| Motor Speed | 3500 rpm |
info@farmerboyag.com
1-800-845-3374
SPECIFICATIONS
| Brand | Goulds |
| Manufacturer Name | Goulds |
| Standard/Approvals | UL ListedCSA CertifiedCE Certified |
| Application | Residential, Commercial or Agricultural Pressure Wash, Reverse Osmosis, Evaporative Cooling Systems/Misters, Booster Service, Spray Systems, Water Circulation, Filtration, HVAC and General Purpose Pumping |
| Series | GB Series |
| Material | Cast Iron |
| Type | 1-Phase 16-Stages |
| Temperature Rating | 160 deg F |
| Flow Rate | 10 gpm |
| Dimensions | 27-1/16 in L x 6-1/16 in W x 5-3/4 in H |
| Inlet Size | 1 in NPT |
| Voltage Rating | 115 to 230 VAC |
| Power Rating | 1 hp |
| Amperage Rating | 6.4/12.8 A |
| Bearing Type | Ball |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall |
| Enclosure Type | Open Dripproof |
| Impeller Type | Glass Filled Engineered Composite |
| Maximum Head | 500 ft |
| Maximum Pressure | 75 psi |
| Maximum Suction Lift | 10 ft |
| Outlet Size | 1 in NPT |
| Motor Speed | 3500 rpm |
