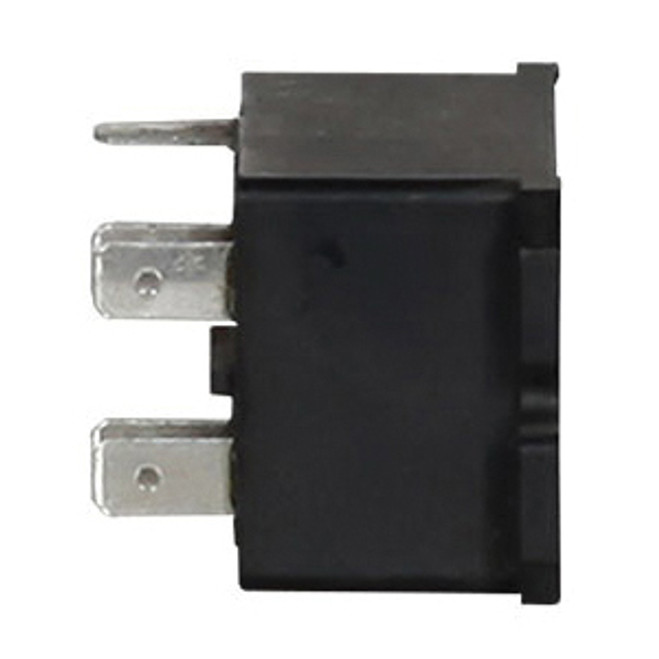

Relay 92 Series Enclosed Power Relay
$23.22
In Stock
$23.22
DETAILS
The 92 series power relays offer a small package size and features class F insulation for a maximum coil temperature of 311 deg F. These power relays meet UL 508 spacing and are directly DIN or panel mountable.
- Standard class f insulation allows for maximum coil temperature of 311 deg F which is ideal for elevated temperature applications
- DIN and panel mount cover mounts directly onto DIN rail or panel and provides flexibility to accommodate last minute design changes
- Sealed construction, vented to resist dust and debris in harsh environments
SPECIFICATIONS
| Brand | Farmer Boy |
| Dimensions | 2.7 in L x 1.33 in W x 1.54 in H |
| Includes | Dust Cover |
| Manufacturer Name | Farmer Boy |
| Marketing Description | The 92 series power relays offer a small package size and features class F insulation for a maximum coil temperature of 311 deg F. These power relays meet UL 508 spacing and are directly DIN or panel mountable. |
| Series | 92 Series |
| Specifications | 240 VAC, 50/60 Hz, DPST-NO, DIN Rail and Panel Mount Cover, 1/4 in Tab Terminal |
| Standard/Approvals | cULus File No. E43641cULus RecognizedUL ListedCSA File No. 225619IEC/EN 61810-1UL 508CSA C22.2 No. 14CE CertifiedRoHS Compliant |
| Suitable For Use With | APCD-295 and APCD-300 Ventilation Controller, Chain Disk Feed Delivery System |
| Type | Enclosed |
SPECIFICATIONS
| Brand | Farmer Boy |
| Dimensions | 2.7 in L x 1.33 in W x 1.54 in H |
| Includes | Dust Cover |
| Manufacturer Name | Farmer Boy |
| Marketing Description | The 92 series power relays offer a small package size and features class F insulation for a maximum coil temperature of 311 deg F. These power relays meet UL 508 spacing and are directly DIN or panel mountable. |
| Series | 92 Series |
| Specifications | 240 VAC, 50/60 Hz, DPST-NO, DIN Rail and Panel Mount Cover, 1/4 in Tab Terminal |
| Standard/Approvals | cULus File No. E43641cULus RecognizedUL ListedCSA File No. 225619IEC/EN 61810-1UL 508CSA C22.2 No. 14CE CertifiedRoHS Compliant |
| Suitable For Use With | APCD-295 and APCD-300 Ventilation Controller, Chain Disk Feed Delivery System |
| Type | Enclosed |
