$97.44
DETAILS

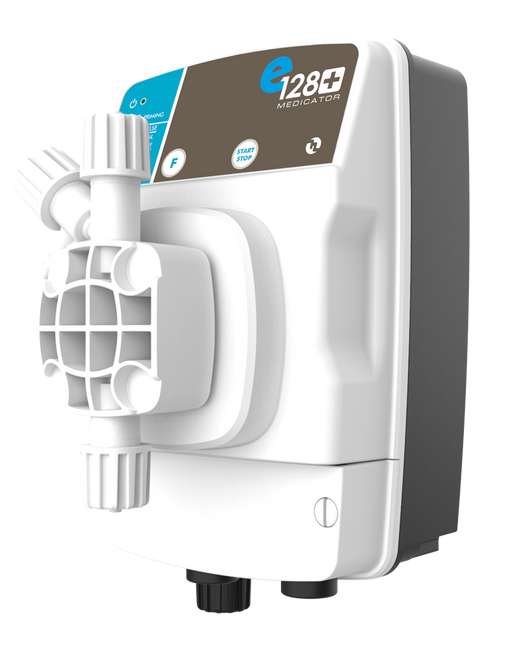

The Dosatron e128 medicator is a water powered pump that provides a simple water treatment solution for the agricultural market. Featuring corrosion resistant housing, the e128 uses proportional control with a water meter to direct inject at a fixed rate of 1:128.
Ideal for water treatment or medication delivery to livestock, the e128 includes an easy to use proportional control via water meter for settings of either 1 pulse per gal (1 gpc) or 1 pulse per 10 gal (10 gpc).
Dosatron e128 Medicator Pump Additional Features:
- e128 technical characteristics deliver a reliable and effective solution
- Self priming pump head with manual air bleed valve for faster priming
- Power supply range of 100 to 250 VAC (50 to 60 Hz)
- Prewired with NEMA 120 VAC, 5-15P plug
- Flow rate variation control in relation to pressure changes
- Underload alarm
- Overload alarm
- PVDF solenoid head with TFE/P (Aflas®) seals for enhanced chemical resistance
- Unique, 1-piece PTFE diaphragm
- Does Not Include ePC Control
SPECIFICATIONS
Connection Size | 1/2 in, 3/8 in |
Flow Rate | 11 gpm |
Includes | Ee128 Medicator Pump, Mounting Bracket, 3 mm Allen Wrench, Tubing/Installation Kit, Screw and Wall Anchor Kit |
Ratio | 1:128 |
Series | e128 |
Standard/Approvals | CE Certified |
Type | Water Powered |
Vendor Warranty | 12 Months |
SPECIFICATIONS
Connection Size | 1/2 in, 3/8 in |
Flow Rate | 11 gpm |
Includes | Ee128 Medicator Pump, Mounting Bracket, 3 mm Allen Wrench, Tubing/Installation Kit, Screw and Wall Anchor Kit |
Ratio | 1:128 |
Series | e128 |
Standard/Approvals | CE Certified |
Type | Water Powered |
Vendor Warranty | 12 Months |
