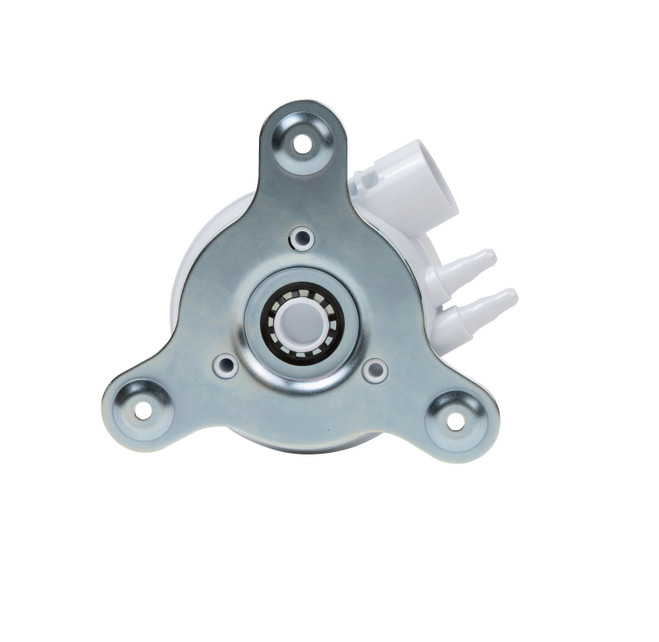

Dwyer® Magnesense® II MS2 Static Pressure Transmitter

SKU:
23090475
$141.62
In Stock
$141.62
Adding to cart… The item has been added
Hot DealsHOT DEALS

DETAILS

The series MS2 Magnesense® II differential pressure transmitter combines the proven stable piezo technology and the versatility of our original series MS with additional features to reduce installation time and simplify ordering. Like the original series MS, the second generation transmitter can be used as a linear pressure output or a linear velocity output with the square root extraction done in the transmitter. Additional parameters have been included to expand the square root capability to include flow measurements.

  • Field selectable ranges and output signal reduce inventory and the chances of ordering an incorrect part
  • BACnet® or Modbus® serial communications reduce wiring cost by daisy-chaining the transmitters
  • Integral field-upgradeable display or plug in remote display tool save upfront material cost and allow for local viewing of measurements

SPECIFICATIONS

Application Duct Static Pressure in Commercial Buildings, Filter Monitoring in Air Handler Units, Building Pressure in Pharmaceutical-Semi-Conductor Clean Rooms, Air Velocity/Flow in VAV Systems
Brand Dwyer®
Dimensions 2-41/64 in H
Manufacturer Name Dwyer®
Series MS2
Specifications 1 psi Maximum Operation, 10 psi Burst, 10 to 35 VDC 2-Wire, 17 to 36 VDC or Isolated 21.6 to 33 VAC 3-Wire Power Requirements, 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC Output Signals, 40 mA Current, IP66 Enclosure
Standard/Approvals BTL CertifiedCE Certified
Trade Mark Magnesense® II
Type New Style
Marketing Description Magnesense® II
Vendor Part # MSX-W10-IN
