Cumberland® 48 Inch Standard Curtain Winch
$1,246.43
In Stock
$1,246.43
DETAILS
The Curtain Controllers with 15 RPM and 30 RPM gear motors can lift a maximum of 4000 lbs. (1814 kg) at a 1:1 pulley ratio
- The curtain controller is a screw driven automated curtain machine with a heavy duty 30 rpm VAC motor
- Multi-directional, frame mounted, header pulleys and latch out assembly is standard on all machines
- Thermostat controls, electronic controls and extra bracket kits are sold separately

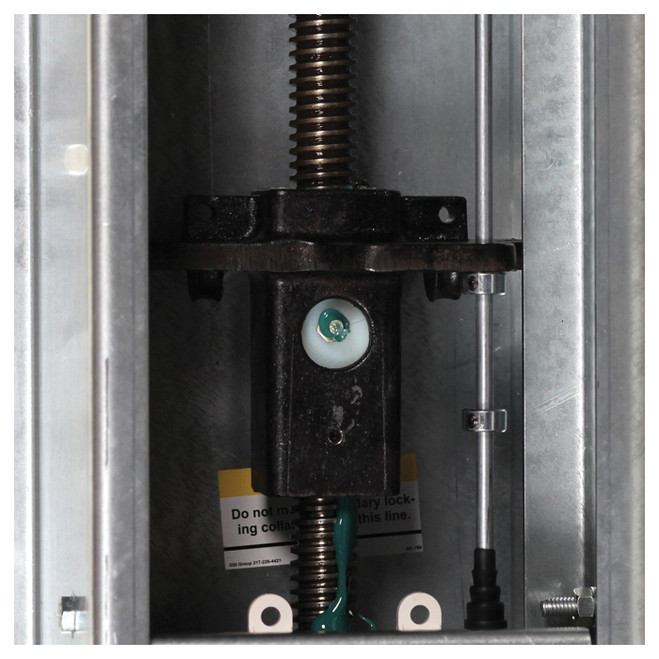

- The curtain controller drive block assembly features a nylon insert in a heavy duty powder coated weldment
- The removable nylon insert simplifies maintenance, decreases friction and provides wear characteristics superior to conventional brass drive blocks
- UHMW polyethylene guide wheels insure smooth travel, proper alignment and stability of the drive block in the machine

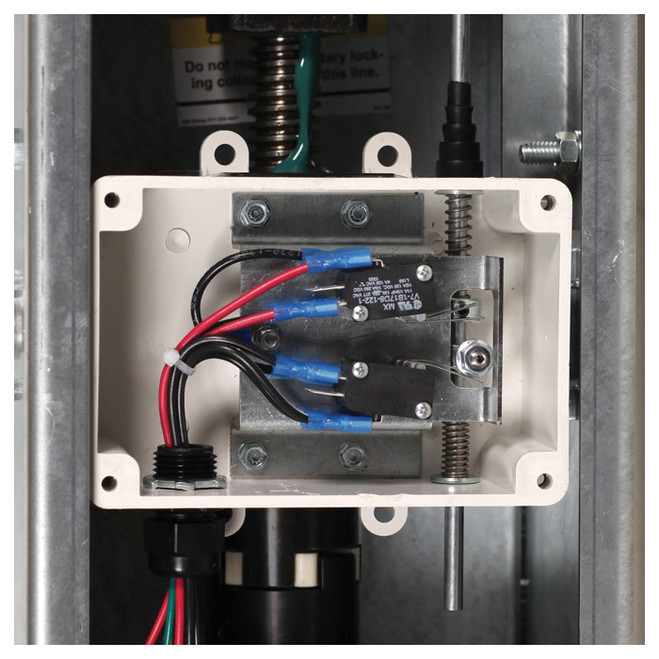

- Isolated primary and secondary limit switches allow for backup protection
- New 1-piece galvanized, lift-off cover makes for ease of service
- Plastic water-resistant junction box is accessible from the outside of the curtain controller
- Adjustable latchout switches can be installed in multiple locations to energize and de-energize a variety of equipment
SPECIFICATIONS
| Brand | AP® / Cumberland® |
| Manufacturer Name | AGCO |
| Drive Unit Length | 48 inches |
| Type | Standard |
| Voltage Rating | 115 VAC |
| Travel Speed | 30 rpm |
SPECIFICATIONS
| Brand | AP® / Cumberland® |
| Manufacturer Name | AGCO |
| Drive Unit Length | 48 inches |
| Type | Standard |
| Voltage Rating | 115 VAC |
| Travel Speed | 30 rpm |
