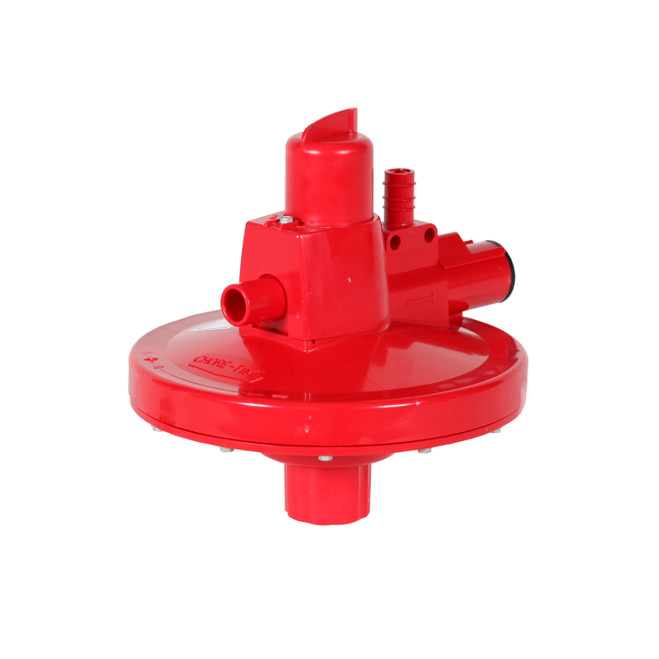

Chore-Time® Manual Adjustment Water Regulator With Folding Stand Tube & Anti-Roost

To operate the regulator, you can turn the Selector Knob clockwise until it stops to shut off the regulator. To turn it on, simply turn the selector knob until it points to the ON position indicated on the regulator. If you want to activate the Flush mode, turn the selector knob fully counter-clockwise until it stops.

It's important to keep in mind some guidelines for using the regulator. The optimum incoming static pressure should be between 25 - 35 psi [172 - 241 kPa]. While the regulator can handle pressures as high as 50 psi [345 kPa], it may shorten the life of the regulator seat and diaphragm. Additionally, ensure that the supply hose is of high quality and rated for the increased pressure.

When flushing, make sure that the outlet line is clear of any restrictions, as excessive back pressure can potentially damage the regulator.

If you are using the manual adjustment version of the regulator, you can set the water column by turning the manual adjustment knob on the bottom of the regulator in the direction indicated on the regulator.
