- 1/4 in through 2 in rated 600 psi CWP, 2-1/2 in thru 4 in rated 400 psi CWP
- CWP-cold working pressure is an indication of the pressure rating for valves at a temperature of upto 100 deg F
- Blow-out proof stem
- PTFE seats/PTFE stem packing
- Zinc plated steel handle with yellow plastic sleeve

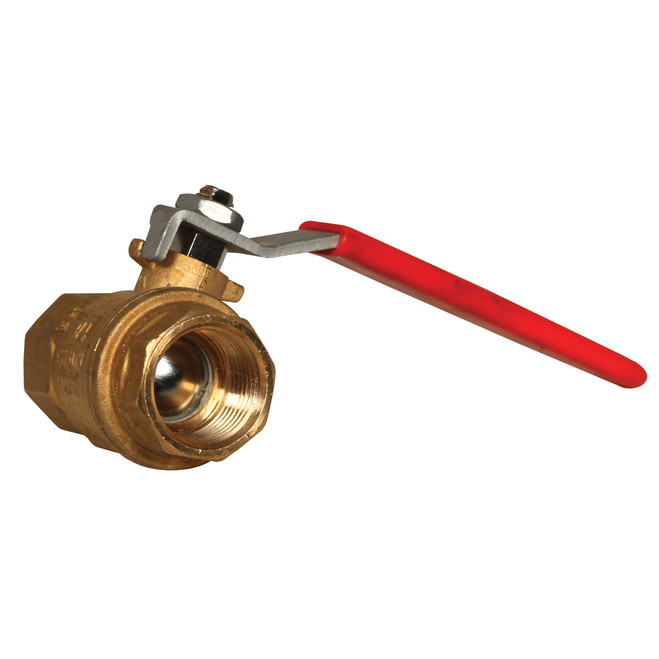

Actuator Type | Handle |
Ball Material | Stainless Steel |
Body Material | Forged Brass |
Brand | Farmer Boy® |
End Style | FNPT |
Freight Class | 60 |
Manufacturer Name | Farmer Boy® |
Media | Hot/Cold Water/Steam/Air/Oil and Gas |
Nominal Size | 3/4 in |
Port Type | Full |
Pressure Rating | 600 psi |
Related Products | 24010319 |
Series | 0827 |
Standard/Approvals | NSF/ANSI 61|UL Listed|cUPC IGC 157|CSA Certified|FM/AGA Approved|CGA 3.16 |
Temperature Rating | 300 deg F |
Type | Lead Free |
