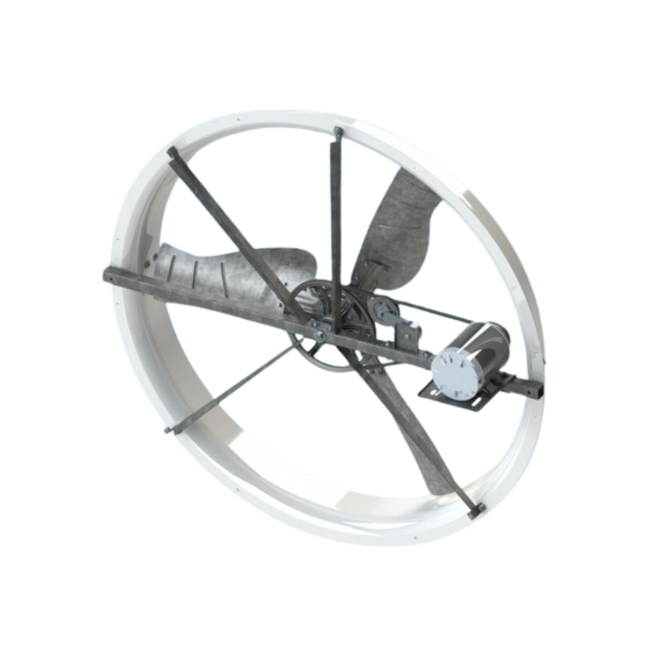

Arctic Air® 72 Inch Belt Drive Variable Speed Arctic Blast Fan
$2,295.90
In Stock
$2,295.90
DETAILS
Our newest generation series of Arctic Air® fans with SMC fiberglass technology once again raise the bar in quality, looks, performance and pricing! The 72” variable speed fan model is rated for 2000W on high and 150W on low settings.
The SMC fiberglass housing results in a smooth skin, aerodynamic shape and highly tolerant fit and molding. This allows for tighter blade clearance, reduces air drag and noise while providing increased strength and performance. In addition, the SMC fiberglass process is better for the environment - the process produces almost no scrap nor negative environmental impact, ideal for workers during manufacturing.
Arctic Air® fans are powered by high efficiency variable speed motors partnered with our robust variable speed aluminum blade design. Our sealed bearing shaft transmission and new Arctic Air® long life belts can be easily removed or serviced by sliding over the end of the blade.
Designed for continual use, our long life sealed motor bearings and shaft bearings reduces fan maintenance. Arctic Air® SMC fans run on high effective mode creating a linear high speed cooling wave of air across the floor. This controlled and directed wave of air is ideal for cooling animals and people, drying floors, insect control, and delivering fresh air.
Our louvered fans are scientifically designed to be energy efficient while producing significant airflow volume. Powerful, dependable motors generate impressive air speed which is directed to the cows by the louvers. Positioning the fresh air right at the cow level helps mitigate heat stress while encouraging lying time, milk production, pregnancy rates, and overall cow health.
Each louvered circulation fan is constructed with corrosion-resistant fiberglass housing, either aluminum or reinforced polypropylene balanced blades, and robust hardware. The belt drive motors feature quick-change belts which save time, labor, and financial resources when any maintenance is completed.
All are variable speed and can be connected to an overarching control system to automate usage. Leverage a louvered fan in the back of the barn, holding area, parlor, robot milking area, and transfer lanes to mitigate heat stress.
Arctic Air® 72” Variable Speed Fan Product Features:
- SMC fiberglass housing is exceptionally smooth on both sides and extremely strong
- Six (6) strong aluminum blades balanced and designed for variable speed
- Highly efficient motors totally enclosed with sealed maintenance-free bearings
- Variable speed motors, when used with an approved VES VFD, operate smoothly between maximum and minimum speed
- Strong aluminum framed shutter with plastic louvers with tie bars
- Two (2) long life quick change belts with 4 sealed bearings in blade transmission shaft
- No maintenance required on blade bearings
- Features taper lock bushing on motors, blade and blade pulley
- 4" Paddle fiber reinforced poly blade
- High speed creates 1200 FPM of velocity under the fan with total floor coverage of 20' x 60'
- 72 in has 6 strong aluminum blades balanced and designed for variable speed
- 72 in motor rated for 2000 W on high and 150 W on low
- 72 in models have 2 long life quick change belts with 4 sealed bearings in blade transmission shaft
- 72 in models have taper lock bushing on motors, blade and blade pulley
- This allows for easy blade positioning and alignment along with removal
- 4" Paddle fiber reinforced poly blade

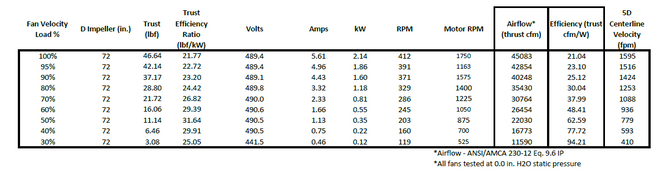

SPECIFICATIONS
| Application | For cooling animals and people, drying floors and insect control |
| Blade Diameter | 72 in |
| Horsepower | 3 hp |
| Material | Fiberglass |
| Standard/Approvals | UL/ULC ListedCE Certified |
| Type | Belt Drive Variable Speed |
| Voltage Rating | 230/460 VAC |
| RPM | 412 |
| Amps | 8/4 |
| Phase | 3 |
| Watts | 2110 |
| Thrust | 20.7 |
| CFM | 45083 |
| CFM/Watt | 21.04 |
| Hz | 60 |
| Includes | w/Bi-Directional Deflectors, w/Cone, w/Guard |
SPECIFICATIONS
| Application | For cooling animals and people, drying floors and insect control |
| Blade Diameter | 72 in |
| Horsepower | 3 hp |
| Material | Fiberglass |
| Standard/Approvals | UL/ULC ListedCE Certified |
| Type | Belt Drive Variable Speed |
| Voltage Rating | 230/460 VAC |
| RPM | 412 |
| Amps | 8/4 |
| Phase | 3 |
| Watts | 2110 |
| Thrust | 20.7 |
| CFM | 45083 |
| CFM/Watt | 21.04 |
| Hz | 60 |
| Includes | w/Bi-Directional Deflectors, w/Cone, w/Guard |
