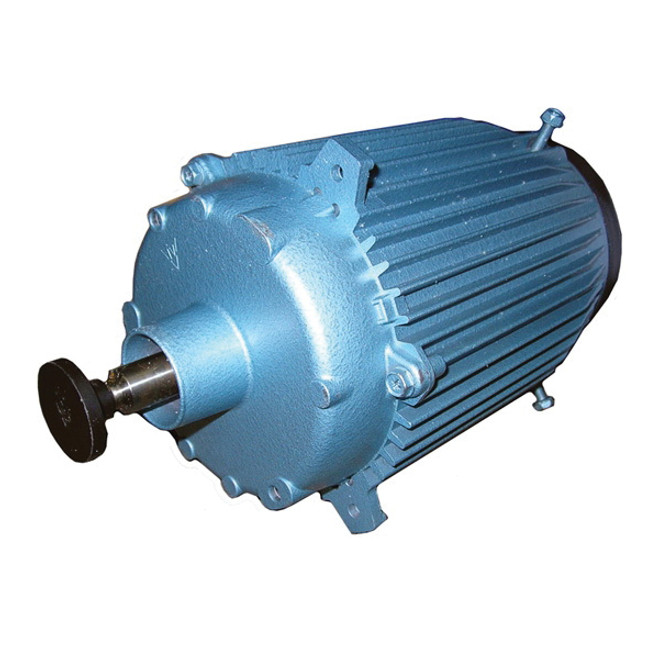

Aluminum Motor for 20 Inch Fan

The Multifan Aluminum Motor (Vendor # M4E5003M70) is a powerful, energy-efficient replacement motor engineered to drive 20-inch Multifan ventilation fans in agricultural, horticultural, and industrial settings. Operating on a 240V single-phase power supply, this motor delivers consistent, high-performance airflow while withstanding the harsh conditions commonly found in livestock housing, greenhouses, and processing facilities.

Designed for continuous-duty operation, this motor features a durable die-cast aluminum housing, providing superior corrosion resistance and thermal conductivity. Its sealed ball bearings, thermal overload protection, and IP55 enclosure rating ensure reliable operation in dusty, humid, and ammonia-rich environments—making it a trusted solution for year-round ventilation needs.

Key Features:

• Voltage: 240V, Single-Phase, 60Hz
• Horsepower: ~5/8 HP (0.63 HP) – Optimized for 20" fan operation
• Speed: ~1,600 RPM for high airflow output
• Amperage: Approx. 2.0 Amps full load
• Construction: Rugged die-cast aluminum housing for corrosion resistance and thermal efficiency
• Motor Type: Totally Enclosed Air Over (TEAO), sealed ball-bearing
• Protection: Built-in thermal overload protection, IP55 rated for dust and water spray resistance
• Mounting: OEM-fit for Multifan 20” axial panel fans (4E50 series)

Ideal Applications:

• Poultry barns (broiler, layer, breeder)
• Swine and cattle facilities
• Greenhouses and horticultural houses
• Dairy parlors and holding areas
• Industrial and commercial ventilation systems

Upgrade your ventilation system with the Multifan M4E5003M70 Aluminum Motor—engineered for durability, built for performance, and optimized for long-term value.
