Arctic Air® 24 Inch 3-Speed Exhaust Fan
$280.91
In Stock
$280.91
DETAILS
Arctic Air® aluminum exhaust fans are North America's most economical and versatile livestock ventilation option – featuring a simple 3-speed switch, a fully enclosed motor, and precision machined blades for optimal balance.

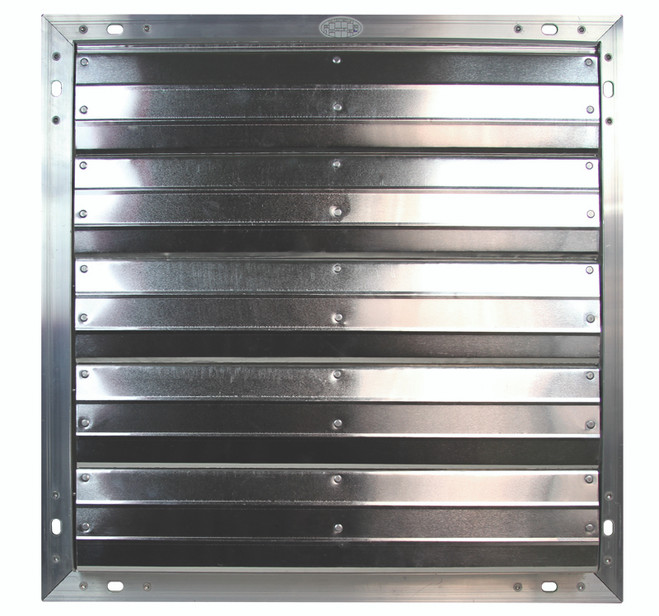

Installation is simple: mount the 24.5” by 24.5” fan in the wall and plug it into an approved receptacle. The integral corrosion resistant aluminum shutter comes complete with a tie bar to reduce shutter flapping and keep the shutters closed when the fan is not running.
24 Inch Aluminum Exhaust Fan With Shutters Features:
- Rough Opening 24.5 Inch x 24.5 Inch
- Ships fully assembled
- Built-in speed switch with 9 ft cord attached; no electrician required when plugged into an approved electrical outlet
- 3-wing aluminum balanced blade; safety powder coated guard on intake side meets OSHA standards
- Rotors have been balanced to reduce noise vibration and prolong life
- Motor enclosures have been machined to <0.5mm to reduce rotor shaft play
- Capacitor rating 450 VAC, 10000 hrs for extended life
- Silicon steel rotors and stators
SPECIFICATIONS
| Application | Agricultural, Horticultural, Factories, Warehouses, Garages and Attics |
| Blade Diameter | 24 in |
| Number of Speeds | 3 |
| Related Products | 11010356 |
| Standard/Approvals | UL/cUL ListedCSA/CSAus CertifedOSHA Approved |
| Voltage Rating | 115 VAC |
| Brand | Arctic Air® |
| Motor HP | 1/4 HP |
| Hertz | 60 |
| RPMs | 1725 |
| AMPs | 4.94 |
| CFM @ .10 SP Hi/Lo | 5625/1970 |
| CFM @ .20 SP Hi/Lo | 4690/1640 |
| Noise BD | 58 / 53 |
| CFM at 0.0 SP Hi/Med/Low | 4874/3596/1881 |
| CFM at 0.1 SP Hi/Med/Low | 3899/2876/1504 |
